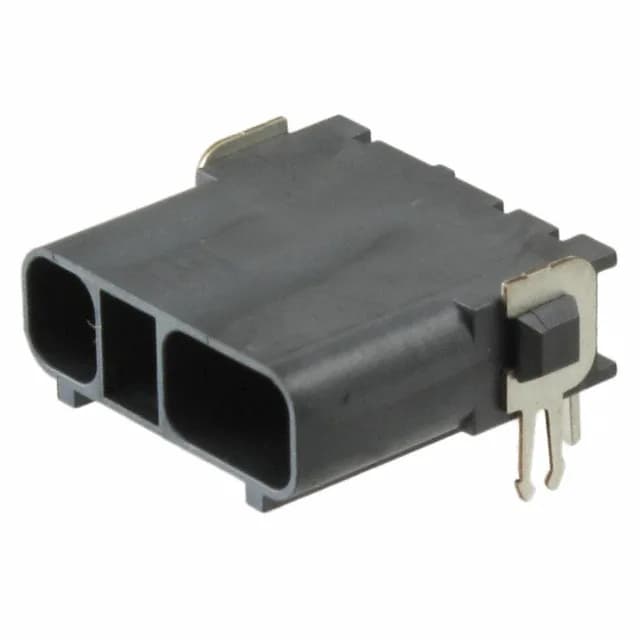

Sealed Right-Angle Header for Harsh Environments
The latch lock provides an audible click on mating, confirming full engagement in field conditions where visual inspection is difficult.
Current Rating Depends on Wire Gauge
The current rating is wire-gauge dependent: 3.5A per circuit when terminated with 22-24 AWG wire, and 5A per circuit with 18-20 AWG. The tin contact finish is cost-effective for low-cycle applications — the 30 mating cycles listed confirm this is a semi-permanent interconnect, not a frequent-disconnect interface. For repeated field-service connections, a gold-plated sibling would offer higher cycle life.
