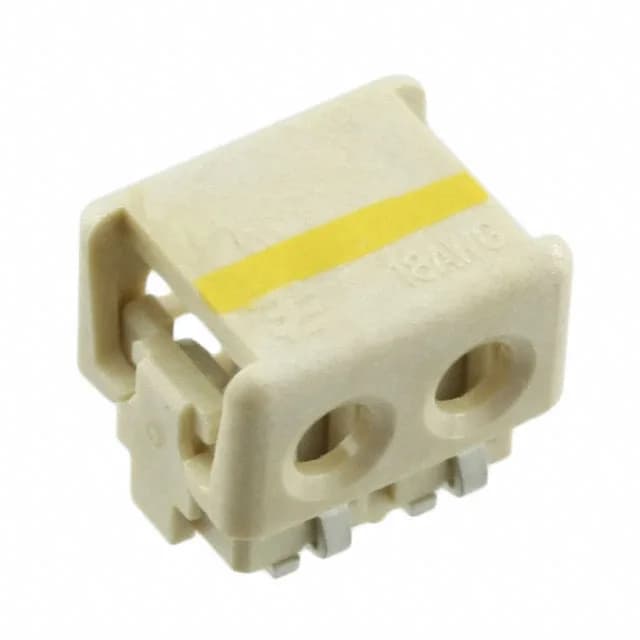

2-Position IDC Connector for 18 AWG Discrete Wire
It terminates discrete wires — not ribbon cable — using the insulation-displacement method, which pierces the jacket and makes contact in one press operation. The 0.157" (4.00 mm) cable pitch matches the board-side pitch, so a 2-conductor cable lands directly on the SMD pads without a pitch transition. Rated for surface mount, right-angle mounting, this part is aimed at low-position-count wire-to-board interconnects where a crimp terminal and housing would add extra assembly steps.
Right-Angle SMD Footprint and IDC Termination
The IDC termination accepts a single 18 AWG conductor per position — the contact tines pierce the insulation on insertion, and the connector body includes a feed-through feature that lets the wire pass beyond the contact area, simplifying cable routing.
