Panel-Mount Power Inlet for Standard US Mains

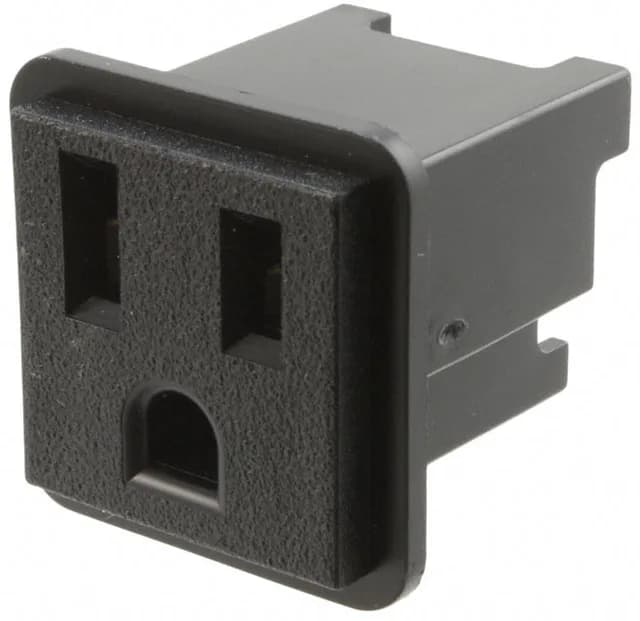

The TE Connectivity 213598-2 is a NEMA 5-15R panel-mount receptacle — the standard three-slot configuration for 125 VAC North American line voltage. It carries a 15 A rating per the NEMA specification, with three positions covering line, neutral, and ground. The connector style is a female socket interface, accepting a standard NEMA 5-15P plug. Mounting requires a square panel cutout measuring 25.63 mm x 25.63 mm, and the panel thickness must be 0.125" (3.18 mm) for a proper fit. Termination is solder, with the connector designed for surface mount attachment to the PCB or panel assembly.
Sizing the Panel Cutout and Mounting
The 25.63 mm square cutout is the critical dimension for the panel punch or laser cut. The 0.125" panel thickness is a hard limit — the receptacle's retention features and solder tabs are sized for that specific thickness. A thicker panel will prevent full seating; a thinner one may leave the connector loose. Solder termination means the receptacle's contacts are soldered directly to the PCB or to solder cups, not crimped or screwed.
