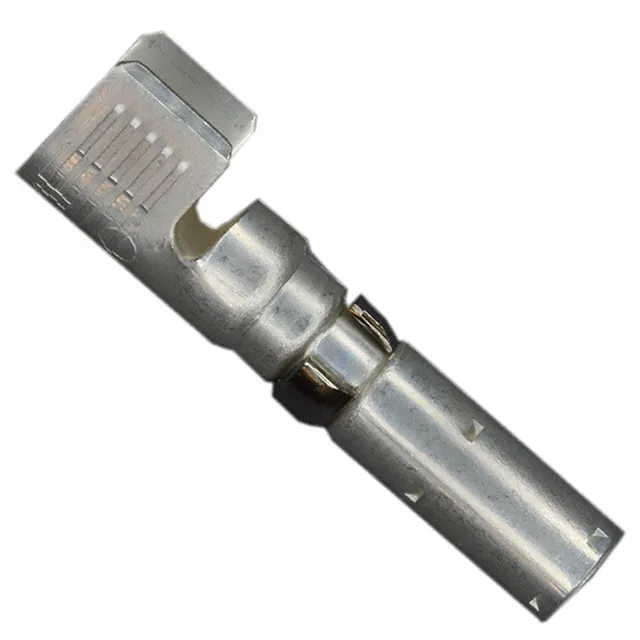

213843-3 — TE Connectivity AMP Connectors product photo

TE 213843-3 Multimate .125 Powerband Socket, 8-10 AWG

MPN213843-3
Active

TE Connectivity Multimate.125 Powerband series, 213843-3 socket contact, crimp termination, 8-10 AWG, silver-plated copper, 50.0µin (1.27µm) plating, bulk packaging.

$13.0000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

213843-3 Technical Specifications
ParameterValue
TypePower
SeriesMultimate .125 Powerband
Wire gauge8-10 AWG
Contact materialCopper
PackageBulk
Pin or socketSocket
Contact finishSilver
Contact terminationCrimp
Contact finish thickness50.0µin (1.27µm)

Product details

The TE Connectivity 213843-3 is a socket contact from the Multimate.125 Powerband series, designed as a crimp-terminated power terminal for 8-10 AWG wire. This is a socket, so it terminates the wire that plugs into a pin header or receptacle cavity.

The 8-10 AWG wire range is the primary fit check for a harness builder — this terminal accepts stranded power cable in that gauge, crimped with the appropriate Multimate die set. Silver-plated copper gives low contact resistance at the crimp joint, important for minimizing voltage drop in a power circuit.

This socket mates with the Multimate.125 Powerband pin contacts and inserts into the standard Multimate housing cavities — the same.125-inch centerline spacing that defines the series.

Frequently asked questions

What is the wire gauge range for 213843-3?

The 213843-3 accepts 8-10 AWG wire. This is a crimp terminal, so the wire must be stripped to the length specified in the TE application drawing for the Multimate contact.

Is 213843-3 compatible with TE Multimate housings?

Yes, the 213843-3 is a Multimate.125 Powerband socket contact designed to insert into standard Multimate housing cavities. It mates with the corresponding pin contact and locks into place with the contact lance. Common housings include the CPC series and other Multimate-based connector families.
