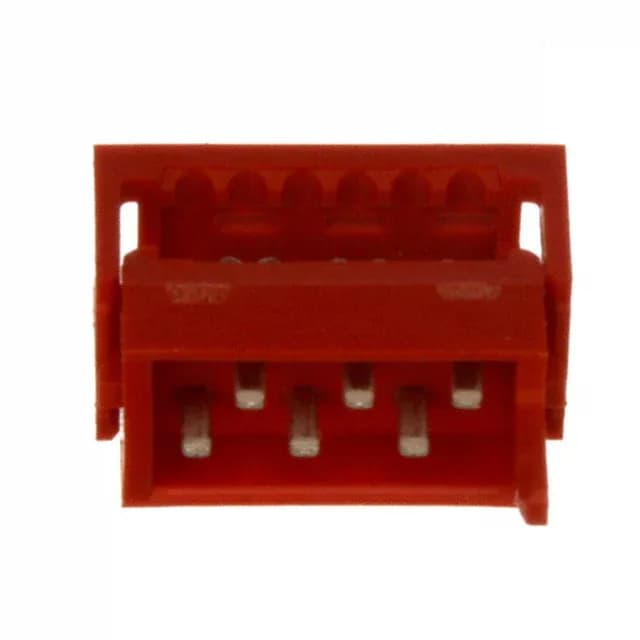

TE Connectivity AMP Connectors 215083-6 — Panel-Mount & In-Line Circular

TE 215083-6 Micro-MaTch Plug, 6 Pos IDC, 28 AWG, Tin

MPN215083-6
Active

TE Connectivity Micro-MaTch series, 215083-6, 6-position IDC plug, 0.100" (2.54 mm) pitch, 2 rows, 28 AWG ribbon cable, tin male pin contacts, free-hanging, red housing.

$0.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

215083-6 specifications
ParameterValue
SeriesMicro-MaTch
Wire typeRibbon Cable
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Wire gauge28 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.059\" (1.50mm)
Contact finishTin
Rows2
Positions6

Product details

Micro-MaTch IDC Plug for 28 AWG Ribbon Cable

The red housing gives a visual cue on the harness — useful when routing multiple ribbon cables in a panel or chassis.

This plug terminates 28 AWG ribbon cable via IDC — no stripping, no crimping, just a one-step press with the correct tooling. The feed-through feature means the cable passes straight through the connector body, which simplifies daisy-chaining in a harness.

The 215083-6 plug mates with the Micro-MaTch receptacle housing (female socket contacts) in the same 6-position, 2-row, 0.100" pitch layout. The receptacle side uses the same IDC termination for 28 AWG ribbon cable, making a complete board-to-cable or cable-to-cable interconnect.

Frequently asked questions

Does 215083-6 have a mating connector part number?

Yes, the 215083-6 plug mates with a Micro-MaTch receptacle housing in the same 6-position, 2-row, 0.100" pitch layout, using female socket contacts and IDC termination for 28 AWG ribbon cable.

Is 215083-6 RoHS compliant?

Yes, the 215083-6 is ROHS3 compliant.

What wire gauge does 215083-6 support?

The 215083-6 terminates 28 AWG ribbon cable via IDC.

Where can I buy 215083-6?

Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
