The 0.100" (2.54mm) pitch aligns directly with standard ribbon cable conductor spacing, and the dual-row layout with 0.059" (1.50mm) row spacing keeps the plug footprint compact. The red housing is a visual key for the series, helping technicians identify the plug during harness assembly.
This plug is rated for 28 AWG ribbon cable only. The IDC contacts are sized for that conductor diameter — 26 AWG is too thick and will damage the insulation displacement slot, leading to an unreliable connection. The feed-through feature lets the ribbon cable pass through the plug body, which simplifies daisy-chain wiring in harnesses where multiple connectors share the same cable run.

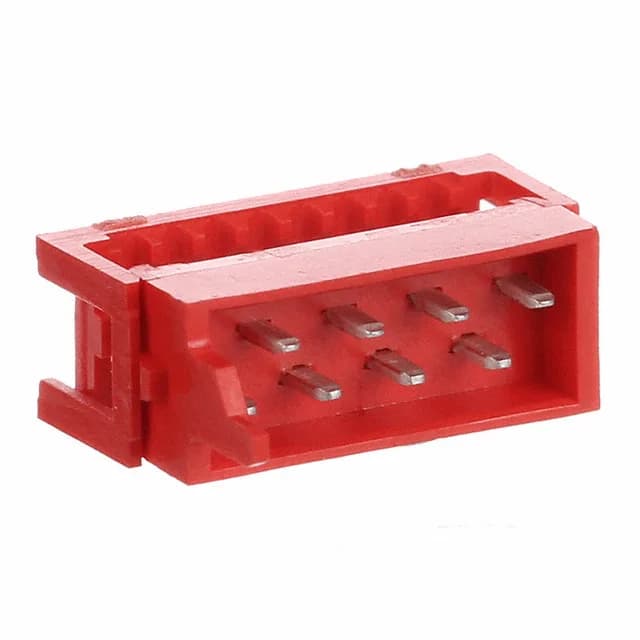

The 215083-8 is a male pin plug that mates with a female Micro-MaTch receptacle, such as the 215084-8 (8-position IDC receptacle). The tin-plated contacts are cost-effective for low-cycle applications; for higher mating-cycle duty, gold-plated variants in the Micro-MaTch series would be preferred. The free-hanging (in-line) mounting style suits cable-to-cable or cable-to-board connections where the plug is not panel-mounted.
