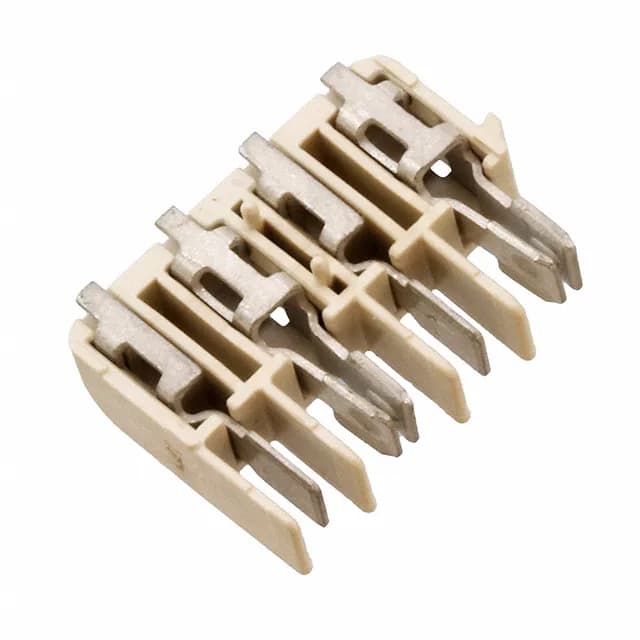

TE Connectivity hermaphroditic blade and receptacle connector, 4 positions, 0.157" (4.00mm) pitch, board edge right-angle SMT, tin contacts, locking ramp, 6A, 125V.
| Parameter | Value |
|---|---|
| Mounting | Board Edge, Surface Mount, Right Angle |
| Connector type | Blade and Receptacle, Hermaphroditic |
| Fastening type | Locking Ramp |
| Voltage rating | 125V |
| Current rating | 6A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Natural |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Pitch | 0.157\" (4.00mm) |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| Positions | 4 |
The 2154640-2: This simplifies BOM management and reduces inventory risk, as every board edge carries the same part. The 0.157" (4.00 mm) pitch provides generous creepage for the 125 V rating while leaving ample routing space between pads on the PCB. Rated 6 A per contact, the tin-plated copper alloy contacts suit moderate-current signal or power distribution within an enclosure.
The pitch is 0.157" (4.00 mm), which is wider than many board-to-board connectors and provides extra creepage for the 125 V rating.
The gold-contact variant 1-2213614-1 is a direct functional equivalent at the same pitch, position count, and current rating, differing only in contact finish for higher mating cycle life.
