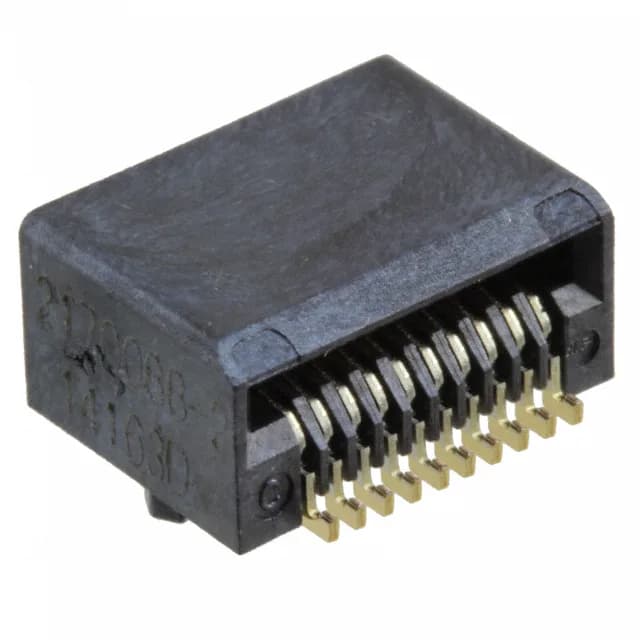

TE Connectivity zSFP+ receptacle, 2170088-2, 20 positions, surface mount right angle, gold 15.0µin contact finish, Tape & Reel, board guide.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Positions | 20 |
| Contact finish thickness | 15.0µin (0.38µm) |
A built-in board guide aids alignment during pick-and-place assembly, reducing placement errors on dense boards.
20 positions match the standard zSFP+ cage footprint for 1x1 or ganged configurations. Solder termination is compatible with reflow profiles for lead-free assembly.
zSFP+ is TE Connectivity's enhanced version of the SFP+ interface, offering improved signal integrity and EMI performance at higher data rates. The 2170088-2 is a zSFP+ receptacle, backward compatible with standard SFP+ modules.
