The TE Connectivity 2170563-1 is a 29-position SAS receptacle built for internal high-speed serial storage interfaces. Surface-mount termination keeps the assembly compatible with standard reflow lines, while the gold 30.0µin contact finish provides the corrosion resistance and cycle life that SAS backplane connections demand. The flange and mating guide on the housing take the alignment burden off the signal contacts during blind-mate insertion — a detail that matters when the connector lands inside a drive bay or midplane assembly.

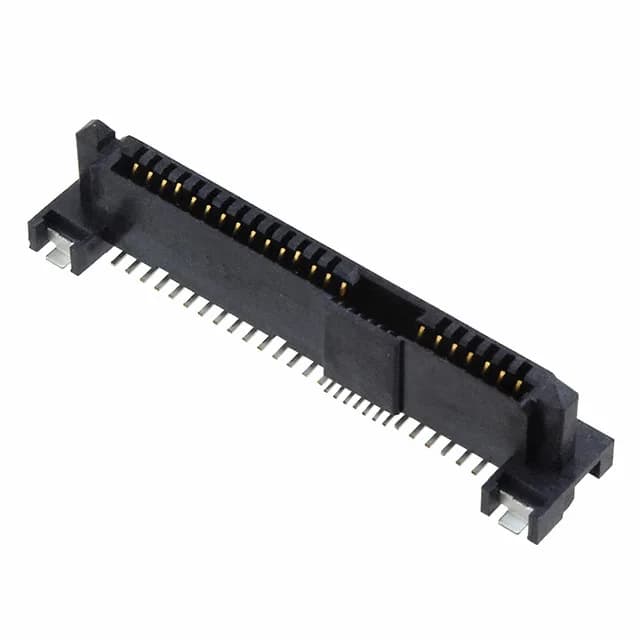

TE 2170563-1 SAS Receptacle, 29 Pos, SMT, Gold 30µ
MPN2170563-1
Active
TE Connectivity SAS receptacle, 29 positions, SMT, gold 30.0µin contact finish, flange and mating guide, Tape & Reel.
$3.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Flange, Mating Guide |
| Termination | Solder |
| Contact finish | Gold |
| Positions | 29 |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Does 2170563-1 require a mating guide?
The 2170563-1 includes a flange and mating guide as part of its housing, so it is designed for blind-mate alignment in backplane or midplane applications. No external alignment hardware is needed.
