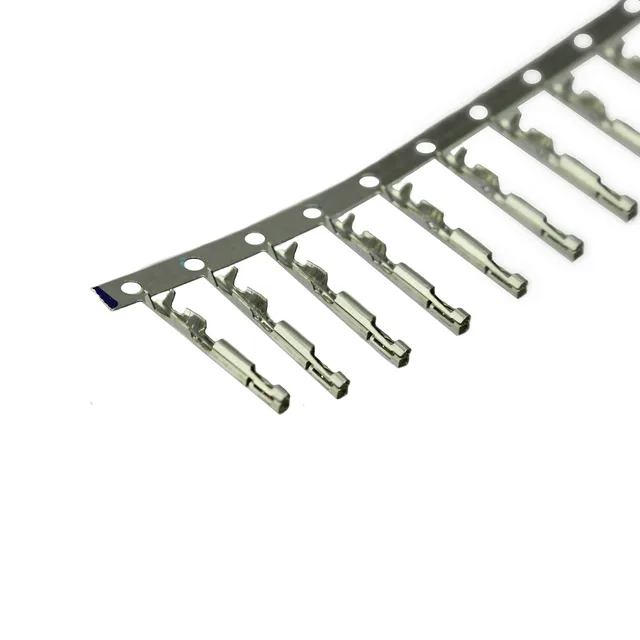

TE Connectivity AMP Connectors MCON stamped crimp socket, order code 2177909-1, 22-24 AWG, tin-plated contact, 31.5µin (0.80µm) finish, crimp termination, tape & reel packaging.
TE MCON 2177909-1 Crimp Socket, 22-24 AWG, Tin
MPN2177909-1
Active
TE Connectivity AMP Connectors MCON stamped crimp socket, order code 2177909-1, 22-24 AWG, tin-plated contact, 31.5µin (0.80µm) finish, crimp termination, tape & reel packaging.
$0.16Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCON
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Stamped |
| Series | MCON |
| Wire gauge | 22-24 AWG |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Pin or socket | Socket |
| Contact finish | Tin |
| Contact termination | Crimp |
| Contact finish thickness | 31.5µin (0.80µm) |
Product details
Frequently asked questions
Will 2177909-1 drop into a panel that was specified around 7-1452665-1 without rewiring?
Both the 2177909-1 and 7-1452665-1 are MCON stamped sockets accepting 22-24 AWG wire with crimp termination and tin plating — the primary difference is the contact finish thickness (31.5µin vs 39.4µin). They share the same wire gauge range and termination style, so a drop-in swap is mechanically feasible, but the plating thickness difference may affect corrosion resistance in harsh environments.
What compliance documentation does TE Connectivity AMP Connectors provide for 2177909-1?
The 2177909-1 is ROHS3 Compliant per TE's lifecycle record. No UL or IEC certification is listed in the available documentation.
