TE Connectivity AMP Connectors 2178299-1 — Quick-Disconnect Terminals

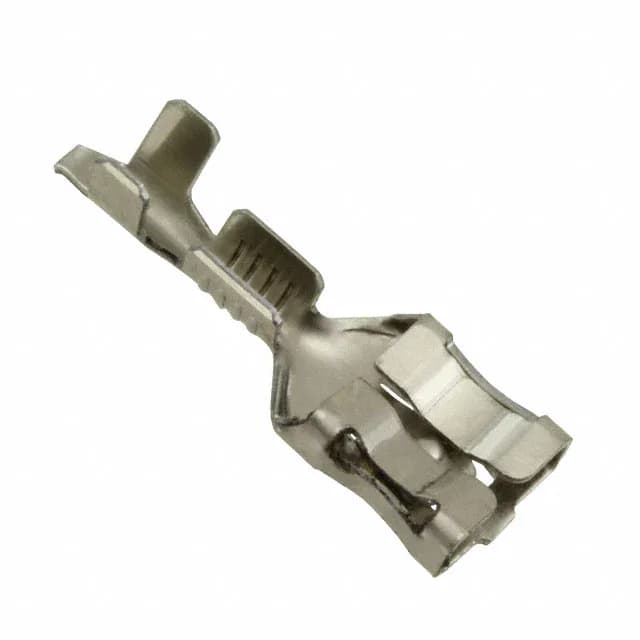

TE 2178299-1 Faston Female Quick-Disconnect, 0.250" Tab

MPN2178299-1
Active

TE Connectivity AMP Connectors Faston female quick-disconnect terminal, order code 2178299-1, 0.250" (6.35mm) tab width, 18-20 AWG, nickel-plated steel, non-insulated, free hanging in-line crimp, Tape & Reel packaging.

$0.1500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2178299-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2178299-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge18-20 AWG
Tab width0.250\" (6.35mm)
Contact materialSteel
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
InsulationNon-Insulated
Tab length0.276\" (7.01mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishNickel
Length - overall0.748\" (19.00mm)
Insulation diameter0.071\" ~ 0.098\" (1.80mm ~ 2.50mm)

Product details

0.250" tab, LIF receptacle for 18-20 AWG

The 2178299-1 is a Faston-series female quick-disconnect receptacle accepting 0.250" (6.35mm) tab width, 0.032" (0.81mm) thick male tabs, and terminating 18-20 AWG wire via crimp. The Low Insertion Force (LIF) spring design reduces mating effort while maintaining retention, and the nickel-plated steel contact provides a corrosion-resistant interface for free-hanging in-line applications.

Same-tab-width peers: 1-1627194-4 and 1-1659250-0

Within the same 0.250" tab width class, the 2178299-1 (18-20 AWG) sits alongside the Utilux-series 1-1627194-4 (15-18 AWG) and 1-1659250-0 (17-20 AWG) — all three share the 0.032" (0.81mm) tab thickness and non-insulated free-hanging crimp format, so the selection narrows to wire gauge range and contact material.

Frequently asked questions

Will 2178299-1 drop into a panel specified around 1-1627194-4 without rewiring?

The 2178299-1 and 1-1627194-4 share the same 0.250" tab width and 0.032" tab thickness, but the 2178299-1 accepts 18-20 AWG while the 1-1627194-4 accepts 15-18 AWG — confirm the wire gauge before substituting.

What compliance documentation does TE provide for 2178299-1?

The 2178299-1 is ROHS3 Compliant per TE Connectivity AMP Connectors.
