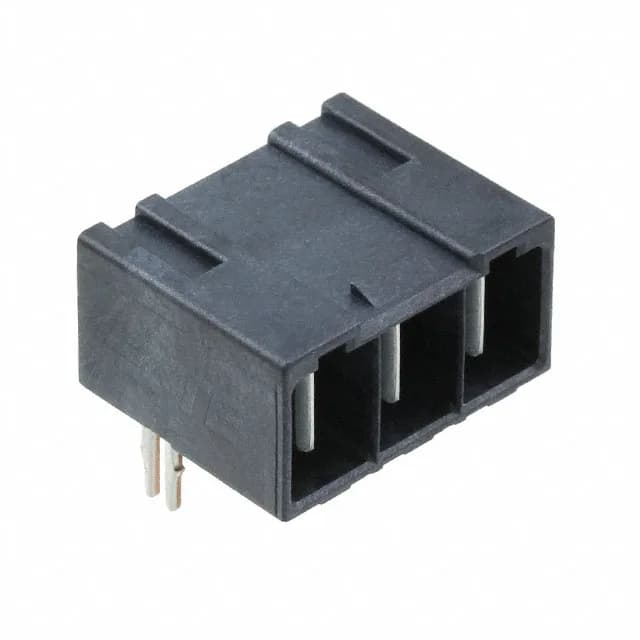

3-Position Right-Angle Power Header for Board-Mount Bus Distribution
It is a through-hole, right-angle component designed to solder directly onto a PCB, with the right-angle orientation placing the mating interface parallel to the board surface — a fit for space-constrained enclosures where the cable exits along the board edge. A board lock feature provides additional mechanical retention during reflow and resists shear forces from cable strain in service.
The 3 positions are all loaded as power contacts — no signal pins sharing the cavity. That means the BOM line for this header is a straight circuit-count match: if the harness calls for three power conductors, this is the header. The right-angle through-hole mounting places the solder tails on a 0.100-inch pitch grid typical of the Elcon Mini family, so the PCB footprint is defined by the blade spacing and the board lock anchor holes.
