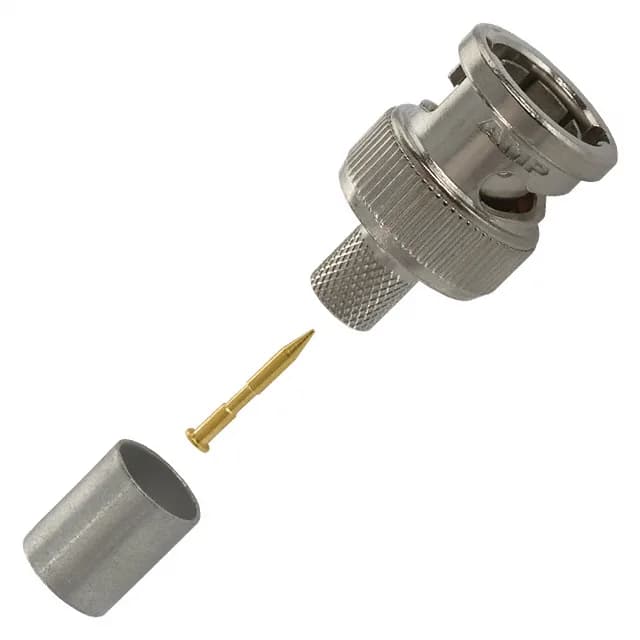

TE Connectivity BNC plug, male pin, 75 Ohm, 2 GHz, crimp termination, nickel-plated zinc body, gold-plated brass center contact, for Belden 9248 cable, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 2 GHz |
| Cable group | Belden 9248 |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polyethylene (PE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.15dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 221185-1: The 75 Ohm impedance targets video, broadcast, and data-communication signal paths where 50 Ohm would be a mismatch.
This plug is specified for the Belden 9248 cable group, which includes common 75 Ohm video coax types like RG59.
The gold-plated brass center contact handles the signal path; the polyethylene dielectric maintains the 75 Ohm characteristic through the connector body.
75 Ohms — this is the characteristic impedance of the connector, matched to 75 Ohm cable and system impedance.
0.15 dB, measured at the rated frequency range.
500 cycles — the gold-plated center contact and bayonet lock are designed for repeated field connects.
Male pin — the center contact is a pin, and the body is a plug that mates with a BNC jack or receptacle.
