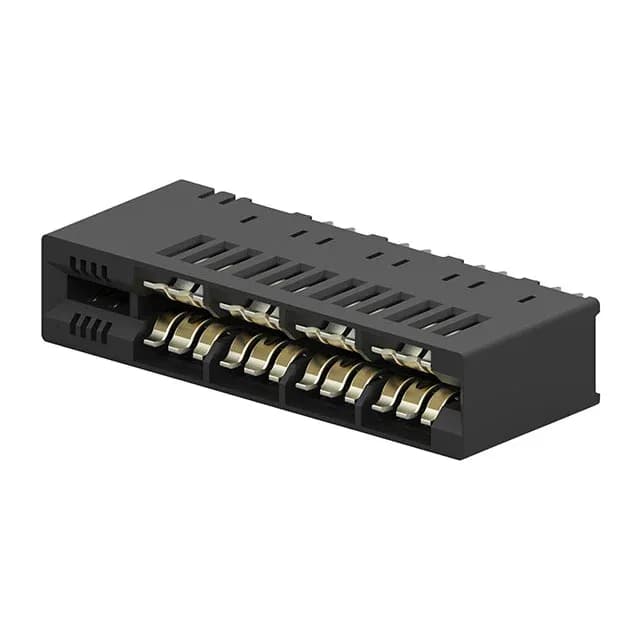

TE Connectivity MULTI-BEAM CE female edge card connector, 2212112-1, 74 positions, dual readout, press-fit termination, 30.0µin gold contact finish, 0.062" card thickness.
| Parameter | Value |
|---|---|
| Series | MULTI-BEAM CE |
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic, Glass Filled |
| Gender | Female |
| Package | Tray |
| Read out | Dual |
| Termination | Press-Fit |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 74 |
| Contact finish thickness | 30.0µin (0.76µm) |
The TE Connectivity 2212112-1 is a 74-position female edge card connector from the MULTI-BEAM CE series, designed for dual-readout on a 0.062" (1.57 mm) thick PCB edge.
The card edge slot accepts a PCB thickness of 0.062" (1.57 mm); the dual-readout contacts wipe both sides of the board pad, doubling the effective contact surface per position.
Submit an RFQ for your BOM quantity and target delivery window.
The 2212112-1 has 74 positions arranged in dual-readout configuration. It accepts a PCB edge thickness of 0.062" (1.57 mm).
