48-Position Hybrid Housing for High-Density Power-Signal Harnesses

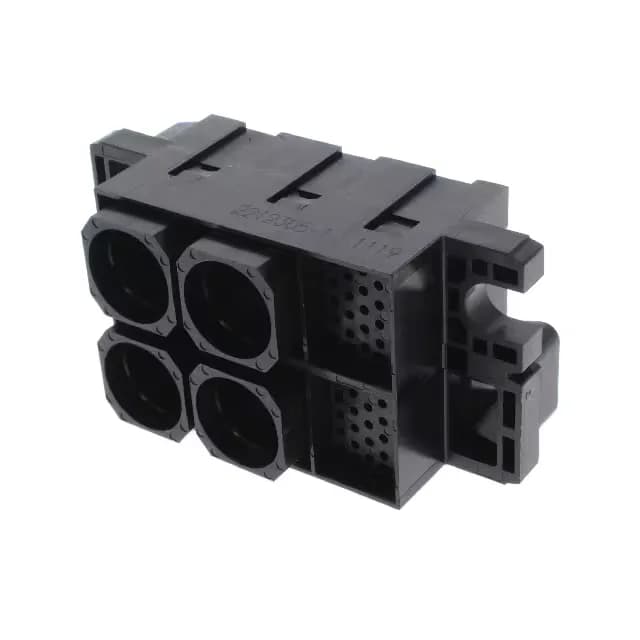

The TE Connectivity 2212305-1 is a panel-mount housing from the FORGE series, designed to accept male pins in a 48-position layout that splits 44 signal circuits and 4 power circuits across two rows. This hybrid count means the connector handles a mixed harness — dense signal lines plus a separate power pair — without needing two separate connectors at the bulkhead. The housing ships empty (contacts not included), so the build requires selecting the matching crimp terminals for both signal and power cavities. Black housing, bulk packaging, and a mating guide feature aid alignment during panel installation.
Panel-Mount Installation and Harness Assembly
This housing mounts through a panel cutout — no PCB footprint to design, which suits it for enclosure bulkheads, junction boxes, or equipment chassis where the harness passes through a wall. The two-row arrangement keeps the connector width manageable for the 48-circuit density. The mating guide feature helps align the plug with its receptacle during blind-mate assembly in tight enclosures.
