IDC splice for step-up/down wire transitions
The 2213600-5 is a 2-entry IDC butt splice from the TE CoolSplice series, accepting 12-14 AWG on one side and 16-18 AWG on the other for step-up/step-down wire transitions.

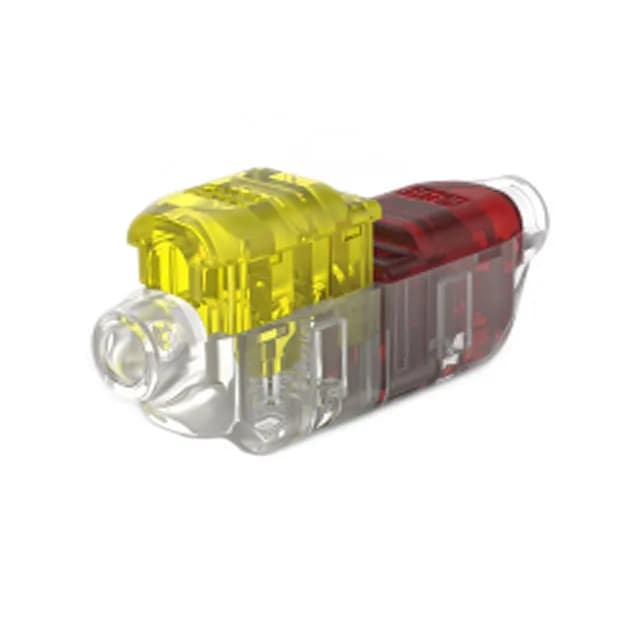

TE CoolSplice 2213600-5 IDC Butt Splice, 12-14 to 16-18 AWG
MPN2213600-5
Active
TE CoolSplice butt splice, order code 2213600-5, 2 wire entries, IDC termination, 12-14 to 16-18 AWG, fully insulated, translucent red/yellow, bulk package.
$1.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCoolSplice
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CoolSplice |
| Terminal type | Butt Splice, Inline, Individual Openings |
| Wire gauge | 12-14 to 16-18 AWG |
| Number of wire entries | 2 |
| Color | Translucent - Red, Yellow |
| Package | Bulk |
| Features | Step Up/Step Down |
| Insulation | Fully Insulated |
| Termination | IDC |
Product details
Frequently asked questions
What is the wire range for 2213600-5?
The splice accepts 12-14 AWG on one entry and 16-18 AWG on the other, enabling step-up/step-down transitions.
