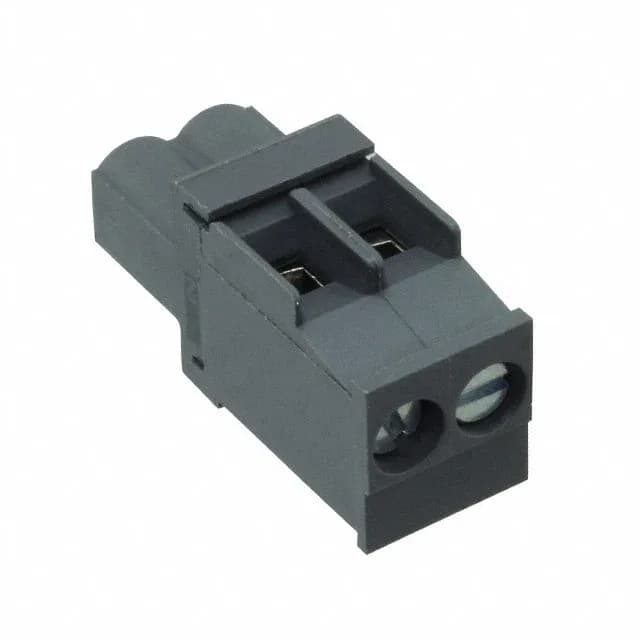

TE Connectivity AMP Connectors WireMate, TB, Buchanan series, Plug, Female Sockets, 2 positions, 0.197" (5.00mm) pitch, screw termination, 15 A UL, 300 V UL, free hanging, black thermoplastic housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WireMate, TB, Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire gauge or range - AWG | 12-26 AWG |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 2 |
| Positions per level | 2 |
The 2213934-2: Retention latches on the non-wire side hold the plug to the mating header — the latch engages audibly and prevents accidental disconnect under cable strain.
Copper alloy contact material with the screw clamp provides a gas-tight connection when torqued correctly.
The part is ROHS3 compliant.
Submit an RFQ for a firm lead-time and price commitment.
The specified torque is 0.5 Nm (4.4 Lb-In). This ensures proper contact pressure without damaging the screw or conductor.
