TE Connectivity AMP Connectors 2213934-3 — Header Plugs & Sockets

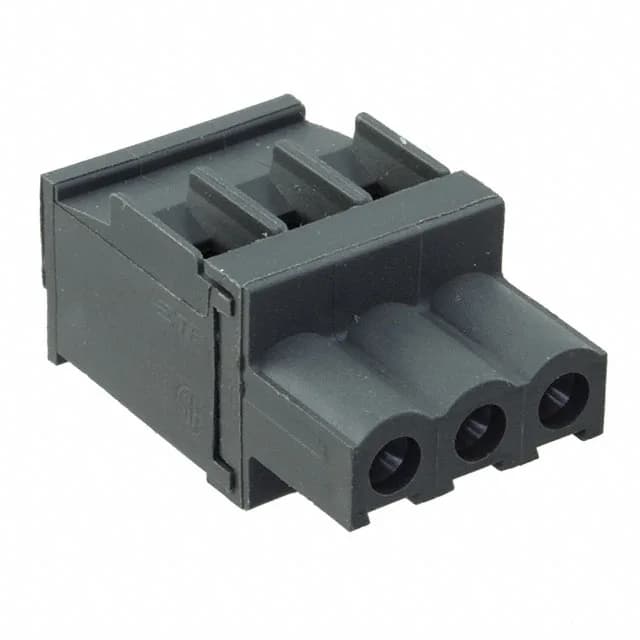

2213934-3 TE Connectivity 5.00mm Screw Terminal Plug, 3 Pos

MPN2213934-3
Active

TE Connectivity WireMate, TB, Buchanan series, 2213934-3, Plug, Female Sockets, 3 positions, 0.197" (5.00mm) pitch, screw termination, 15 A, 300 V, UL94 V-0, Black, Bulk

$2.6600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesWireMate, TB, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2213934-3 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesWireMate, TB, Buchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry270°
Wire gauge or range - AWG12-26 AWG
ColorBlack
Contact materialCopper Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)

All specifications

2213934-3 additional specifications
ParameterValue
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Torque - screw0.5 Nm (4.4 Lb-In)
Number of levels1
Termination styleScrew
Positions3
Positions per level3

Product details

3-Position Screw Terminal Plug for Panel Wiring

The 2213934-3 is a 3-position plug from TE's WireMate, TB, Buchanan series — a free-hanging female socket block terminated by screw clamp, not crimp. The 270° wire entry means the conductor routes perpendicular to the plug axis at an angle — useful when the mated header is recessed or when multiple plugs stack alongside each other in a rail-mount block. The retention latches on the non-wire side hold the plug to the mating header against vibration, though this is a screw-terminal block, not a high-shake automotive connector.

Frequently asked questions

Where can I buy 2213934-3 and how do I get a price?

2213934-3 is sourced per RFQ through independent distribution.

What is the closest functional alternative to 2213934-3?

The peer part 1-2213934-1 is in the same WireMate series with the same pitch, current rating, and termination style. Verify the position count matches your BOM before substituting.

Is 2213934-3 RoHS compliant?

Yes — the part is listed as RoHS Compliant. No RoHS exemption or conflict is recorded on this order code.
