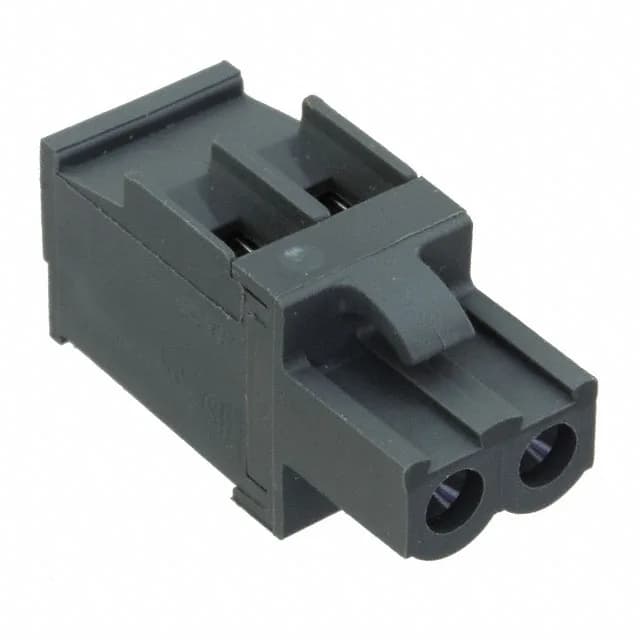

The 2213935-2 is a 2-position plug with female sockets from TE Connectivity's WireMate, TB, Buchanan series. It uses a 5.00mm pitch and is rated for 15 A at 300 V, making it suitable for power distribution in industrial control panels, PLC I/O modules, and sensor junction boxes where screw-terminated field wiring is preferred. The plug is free-hanging (in-line) and accepts 12-26 AWG wire. The 90° wire entry lets the cable exit perpendicular to the mating axis — useful when the enclosure depth is tight and the cable needs to route along the panel wall.
Torque and termination — what the screw spec means
The 12-26 AWG range covers most power and signal wiring in a control cabinet. For a 12 AWG solid wire, strip to the length recommended in the product drawing and tighten to the full 0.5 Nm. For 26 AWG stranded, reduce torque slightly to avoid cutting strands — the datasheet derating curve applies.
Available through independent distribution channels.
Mating half and build-to-print checklist
This plug mates with a 5.00mm pitch header (male pins) from the same WireMate series. The mating header is typically a PCB-mount or panel-mount receptacle with 2 positions. Confirm the header part number from the TE product drawing — the retention latches on this plug engage with matching slots on the header. For a complete build-to-print assembly, you need: the plug body (this part), the mating header, and the wire (12-26 AWG). No separate contacts or backshell are required — the screw termination clamps directly onto the stripped wire.
