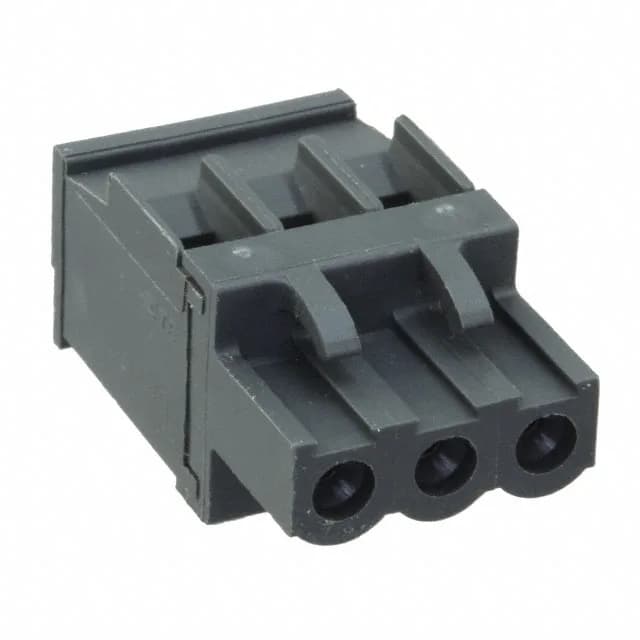

TE Connectivity AMP Connectors WireMate, TB, Buchanan series, 2213935-3 Plug, Female Sockets, 3 positions, 0.197" (5.00mm) pitch, 15 A, 300 V, screw termination, free hanging, 90° wire entry, UL94 V-0, Black, Bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WireMate, TB, Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 12-26 AWG |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 3 |
| Positions per level | 3 |
Single-level design with 3 positions per level — no stacking, just one row of terminals.
Mates with a 5.00 mm pitch header (TE base product number 2213935). The retention latches on the wire side lock the pair together — no secondary lock needed for most applications.
2213935-3 is sourced through independent distribution. Submit an RFQ for current pricing and availability — quantities are confirmed at quote time, not held on the shelf.
The screw clamp accepts 12-26 AWG wire. Torque to 0.5 Nm (4.4 Lb-In) — overtightening can damage the thermoplastic threads.
