TE Connectivity AMP Connectors 2214913-1

TE Connectivity 2214913-1 MULTI-BEAM CE Female Edge

MPN 2214913-1
Active

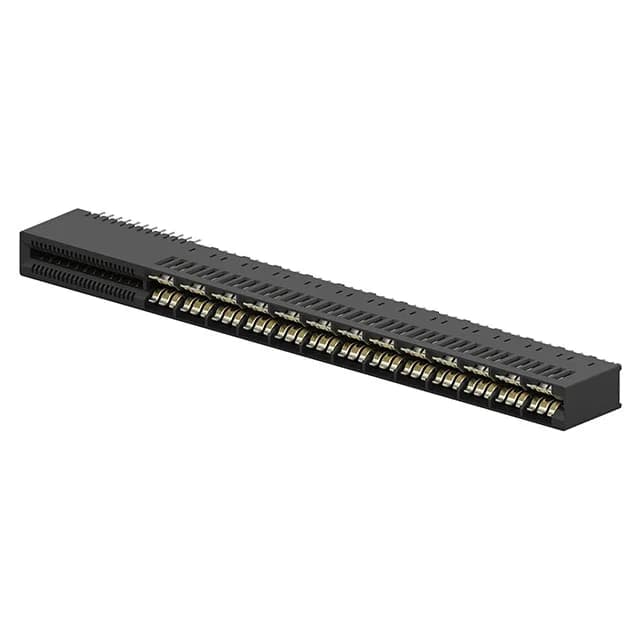

TE Connectivity MULTI-BEAM CE, Female edge-card connector, 2214913-1, 74 positions, 2 rows, Dual Read Out, Press-Fit termination, Gold 30.0µin contact finish, Black housing.

$14.6925 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2214913-1 specifications
ParameterValue
SeriesMULTI-BEAM CE
Card typeNon Specified - Dual Edge
MountingThrough Hole
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic, Glass Filled
GenderFemale
PackageBulk
Read outDual
TerminationPress-Fit
Card thickness0.055\" (1.40mm)
Contact finishGold
Rows2
Positions74
Contact finish thickness30.0µin (0.76µm)

Product details

74-Position Press-Fit Edge Connector for Backplane Power Distribution

The TE Connectivity 2214913-1 is a 74-position female edge-card connector from the MULTI-BEAM CE series, designed for high-current backplane and power distribution applications. It accepts a 0.055" (1.40mm) thick PCB and terminates via press-fit pins — no solder required, which means a cleaner assembly process and easier rework in the field. The dual-row, dual-readout configuration gives you 74 contacts across two rows, reading both sides of the card edge.

Press-Fit Termination and Board Fit

That's the standard choice for backplane assemblies where reliability across temperature cycling matters more than solder-inspectability. The card thickness spec of 0.055" (1.40mm) is fixed — the press-fit pin geometry is tuned to that board thickness, so verify your PCB stack-up against that dimension before committing the BOM. Through-hole mounting with press-fit pins gives mechanical retention that handles the insertion forces of a mating backplane connector without secondary fasteners.

At 30 µ", the contact is designed for repeated insertion and extraction cycles typical of backplane daughtercard interfaces, where a card may be swapped multiple times over the equipment life. No current rating is listed in the available specs, but the MULTI-BEAM CE series is built for power distribution — the contact beam cross-section and the press-fit tail gauge are sized for tens of amps per contact in a backplane bus.
