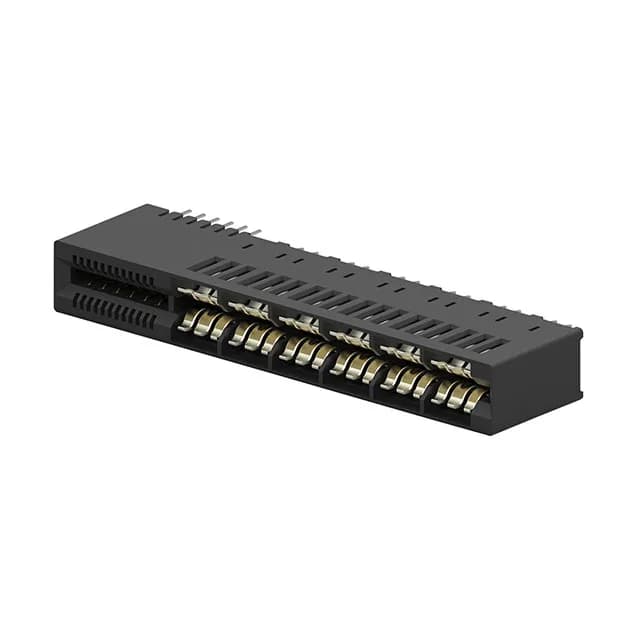

TE Connectivity MULTI-BEAM CE card edge connector, female, 36 positions, dual readout, press-fit termination, 0.055" (1.40mm) card thickness, 30.0µin gold contact finish, Through Hole mounting, Black housing.
| Parameter | Value |
|---|---|
| Series | MULTI-BEAM CE |
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic, Glass Filled |
| Gender | Female |
| Package | Bulk |
| Read out | Dual |
| Termination | Press-Fit |
| Card thickness | 0.055\" (1.40mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0.055" (1.40 mm) card thickness it accepts is the dimension you need to match against your PCB edge — too thick and the card won't seat, too thin and the contacts lose normal force.
This avoids thermal stress on the connector housing and the PCB, and it makes field replacement possible — a damaged connector can be staked out and a new one pressed in without desoldering.
The 2214913-4 accepts a card thickness of 0.055" (1.40 mm). Your PCB edge must match this dimension for proper contact engagement.
