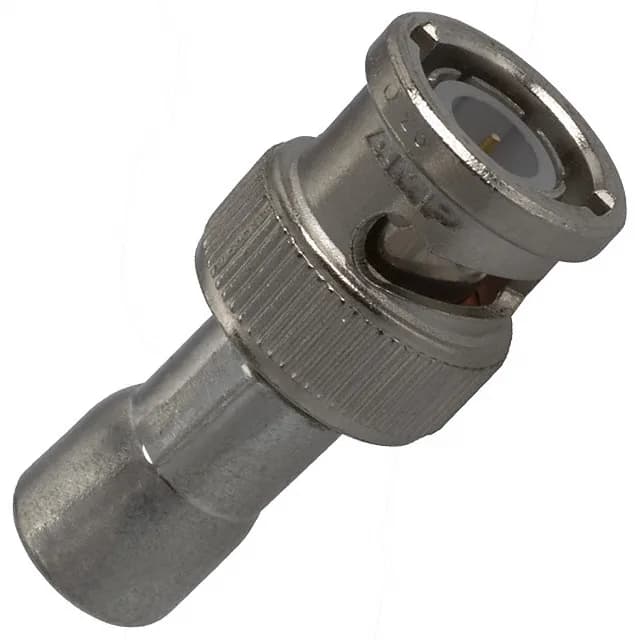

TE Connectivity BNC plug, male pin, 50 Ohms, gold contact finish, nickel-plated brass body, free-hanging cap mount, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging, Cap |
| Connector type | Plug, Male Pin |
| Body material | Brass |
| Contact material | Brass |
| Dielectric material | Polyethylene (PE) |
| Package | Bulk |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Contact finish | Gold |
The 221629-4: Gold contact finish on a brass body with nickel plating; the dielectric is polyethylene. This is a free-hanging, cap-style plug — no panel mount, no PCB tails, just a cable-end termination that twists and locks.
The free-hanging cap design means it terminates the cable end; no board footprint or panel cutout to match.
For a direct cross-reference, sourcing through the broker/surplus channel against an RFQ is the practical path — a same-interface 50 Ohm BNC plug from TE's current catalog would require confirming the mechanical and electrical fit.
The 221629-4 is rated at 50 Ohms impedance, matching standard 50 Ohm coax cable and BNC interfaces.
