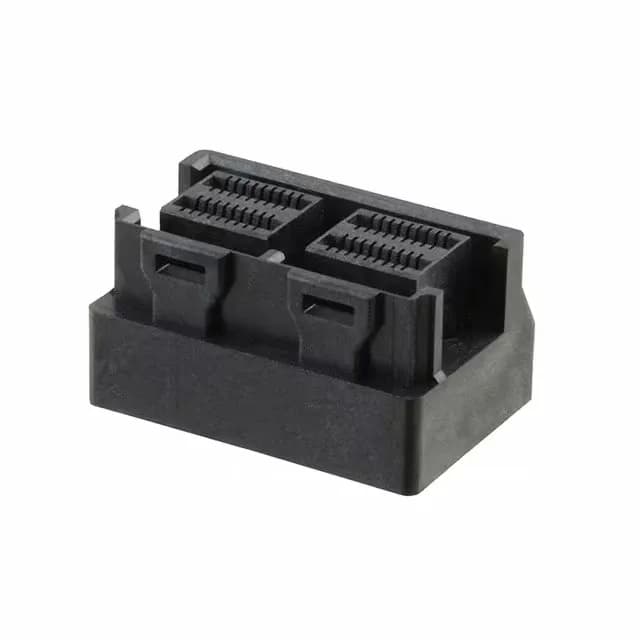

TE 2227640-1 SAS Mini HD Receptacle, 72 Pos, Press-Fit

MPN 2227640-1
Active

TE Connectivity SAS, Mini HD receptacle, 72 (36 x 2) positions, press-fit termination, through hole mounting, tray package.

$15.8500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2227640-1 specifications
ParameterValue
MountingThrough Hole
Connector typeReceptacle (1x2)
PackageTray
TerminationPress-Fit
Positions72 (36 x 2)

Product details

The TE Connectivity 2227640-1 is a SAS Mini HD receptacle, a 72-position connector laid out as 36 signal pairs in two rows. The 72 positions map to 36 lanes, each lane carrying a transmit and receive pair — the typical count for a multi-drive backplane controller interface. Press-fit termination means this connector presses into plated through-holes on the backplane without solder. That avoids the thermal stress of reflow on a large connector body and makes field replacement of a damaged receptacle possible — desoldering a 72-position through-hole part is not a field operation.

Why Press-Fit Matters for the Assembly

Press-fit is the standard termination for high-density backplane connectors because it eliminates the solder joint as a failure mode. The compliant pin compresses into the plated barrel of the through-hole, creating a gas-tight connection that handles thermal cycling in a server chassis better than a soldered pin. The trade-off is that the PCB requires a controlled hole size and plating thickness — the backplane fab must hold the drilled diameter within the press-fit pin manufacturer's specified range, or insertion force and retention suffer.
