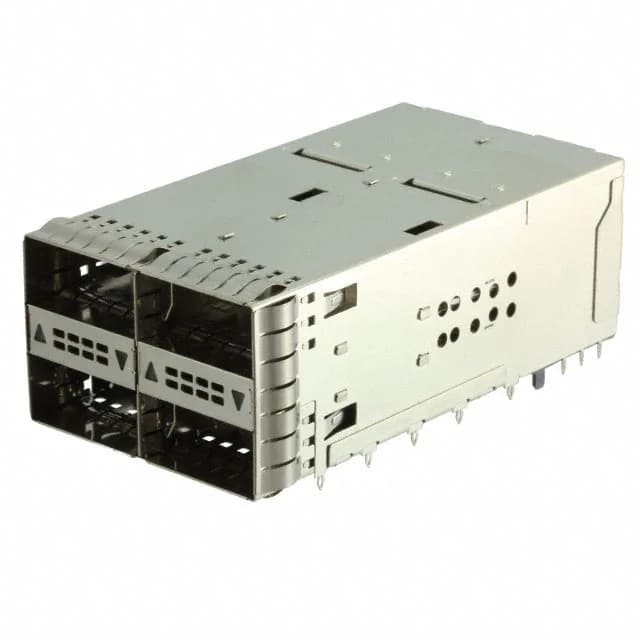

TE Connectivity ZQSFP+ receptacle with cage, ganged 2x2, 152 (38x4) positions, press-fit termination, through-hole right-angle, gold contact finish 30.0µin, EMI shielded with light pipe, tray.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle with Cage, Ganged (2x2) |
| Package | Tray |
| Features | EMI Shielded, Light Pipe |
| Termination | Press-Fit |
| Contact finish | Gold |
| Positions | 152 (38 x 4) |
| Contact finish thickness | 30.0µin (0.76µm) |
The TE 2227667-2 is a ZQSFP+ connector — a ganged (2x2) receptacle with an integrated cage, carrying 152 positions arranged as 38 per port. The EMI shield and integral light pipe are built into the cage, so the assembly contains radiated emissions and gives a visual link-status indicator without a separate PCB LED.
That saves a process step on the backplane line and makes the connector field-replaceable if a cage gets damaged.
Yes, the integrated cage assembly includes a light pipe for visual link-status indication. This eliminates the need for a separate PCB-mounted LED and simplifies the front-panel design.
