TE Connectivity AMP Connectors 2227669-3

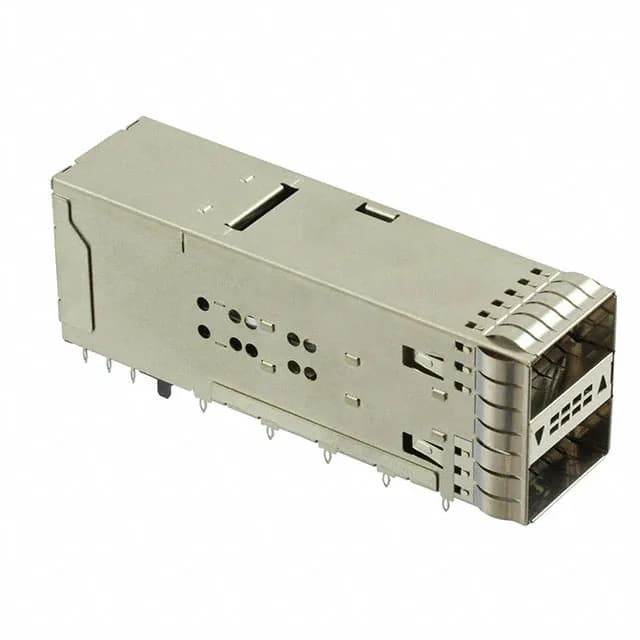

TE Connectivity 2227669-3 ZQSFP+ Receptacle, 76 Pos

MPN 2227669-3
Active

TE Connectivity ZQSFP+ receptacle with cage, ganged (2x1), 76 (38x2) positions, press-fit termination, through-hole right-angle mounting, gold 30.0µin contact finish, EMI shielded with light pipe, tray.

$33.1232 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2227669-3 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeReceptacle with Cage, Ganged (2x1)
PackageTray
FeaturesEMI Shielded, Light Pipe
TerminationPress-Fit
Contact finishGold
Positions76 (38 x 2)
Contact finish thickness30.0µin (0.76µm)

Product details

It carries 76 positions laid out as 38 per port, the standard pinout for QSFP and QSFP28 modules. The press-fit termination means the compliant pins cold-deform into the PCB plated through-holes during assembly, eliminating the solder step and making rework straightforward.

Why the Press-Fit and Shielding Matter for Signal Integrity

At the data rates ZQSFP+ handles — 25 Gbps per lane and above — every discontinuity in the signal path costs you eye height. The press-fit pin gives a gas-tight mechanical connection without the thermal stress of reflow, and the EMI shielding integrated into the cage keeps crosstalk between adjacent ports and radiated emissions from the board under control. The light pipe routes port-status indication to the front bezel without needing separate board-level LEDs, which simplifies the PCB layout and reduces the component count on the line card.

If your application calls for frequent module swaps in a lab or test environment, this plating grade will hold up. The tin-on-solder-tail interface (typical for press-fit pins) is a separate surface; the gold is only on the contact beam that wipes the module pad.

Packaging and Sourcing

The 2227669-3 ships in tray packaging, which is the standard for press-fit connectors that need to be kept aligned for automated placement. Lifecycle status is Active — the part is a current catalog item from TE, not a phase-out or last-time-buy situation.
