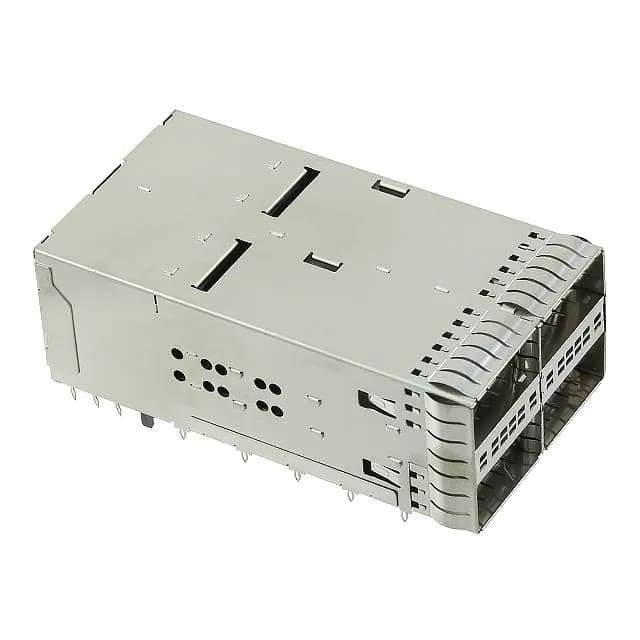

The 152 positions are arranged as 38 per port, giving 4 lanes per cage for high-density 100 GbE or 4x28 Gbps aggregate per port. The press-fit termination eliminates soldering, which means the connector is rework-friendly and avoids thermal stress on the backplane or midplane during assembly.
EMI Shielding and Contact Plating
The EMI Shielded feature is integral to the cage design — the metal cage provides a continuous ground path around each port, containing radiated emissions from the high-speed differential pairs. This is not an add-on gasket; the cage itself is the shield. Gold on the mating interface also prevents oxide formation that would degrade signal integrity at 25+ Gbps per lane.
