TE Connectivity AMP Connectors 227161-6 — RF Cable Assemblies

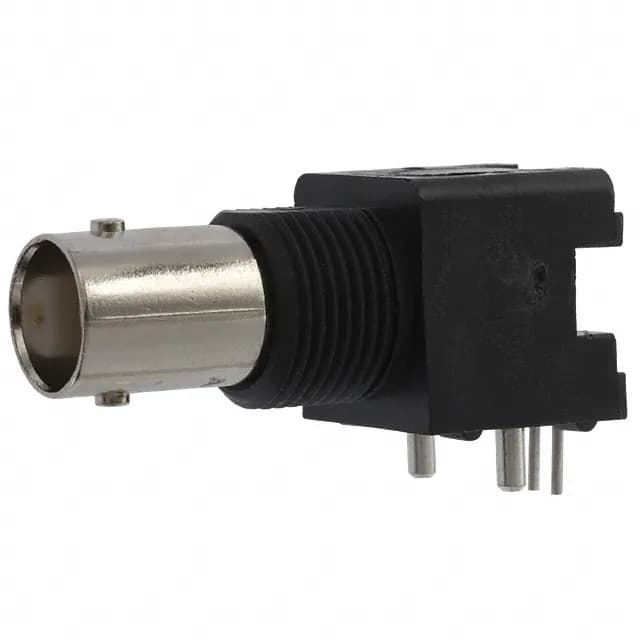

TE Connectivity 227161-6 BNC Jack, 50 Ohm, 4 GHz

MPN227161-6
Active

TE Connectivity 227161-6 BNC jack, female socket, 50 Ohm impedance, 4 GHz max frequency, panel mount with bayonet lock, solder termination, includes lockwasher and nut.

$11.6700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 227161-6 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

227161-6 key specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorBlack, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk

All specifications

227161-6 additional specifications
ParameterValue
FeaturesBoard Guide, Isolated
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What Ships in the Box — and What the Hardware Means

The 227161-6: The lockwasher sits between the panel and the nut to prevent the jack from loosening under vibration or thermal cycling — a detail that matters when the cable is frequently disconnected and reconnected.

Mounting and Termination — Bulkhead Fit with Solder Tails

The mounting feature is bulkhead — front side nut.

The datasheet is available from the manufacturer; the key fit parameters — 50-Ohm impedance, 4 GHz bandwidth, BNC interface — are confirmed in the product specification.

Frequently asked questions

Does 227161-6 include the lockwasher and nut?

Yes, the 227161-6 ships as three pieces: the connector body, one lockwasher, and one nut. The lockwasher prevents loosening under vibration, and the nut secures the jack to the panel from the front side.

Is 227161-6 a 50-ohm BNC connector?

Yes, the 227161-6 is a 50-Ohm BNC jack, female socket, rated to 4 GHz maximum frequency. The 50-Ohm impedance matches standard RF test and telecom systems.
