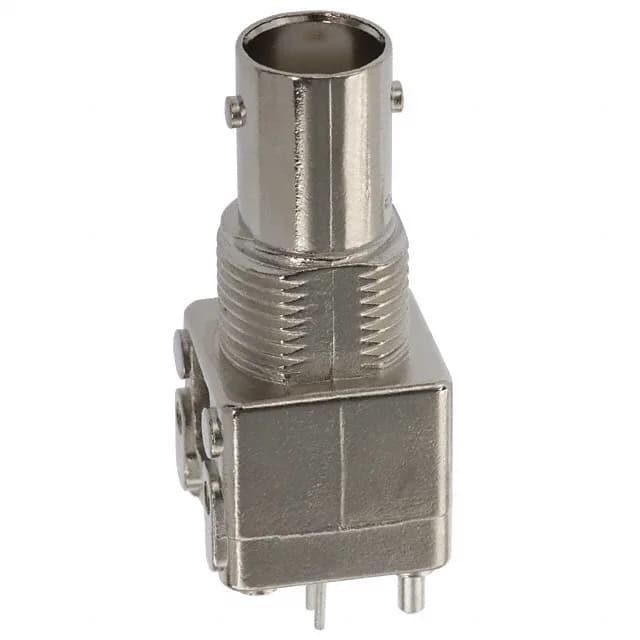

TE Connectivity BNC jack, female socket, 50 Ohms, 4 GHz, 500 V, 500 mating cycles, panel mount with bayonet lock, gold-plated centre contact, solder termination.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Phosphor Bronze |
| Package | Tube |
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The shield termination is solder — you solder the braid or foil to the body after passing the cable through the nut. The centre contact also terminates by solder cup or solder post, depending on the cable prep. The through-hole PCB version uses the same solder shield termination; the panel mount version gives you a clean RF ground reference at the chassis.
The 227673-1 is a 50-Ohm BNC jack rated to 4 GHz maximum frequency. The 50-Ohm impedance is the standard for video, data, and RF signal paths; the 4 GHz ceiling covers most test and instrumentation applications.
