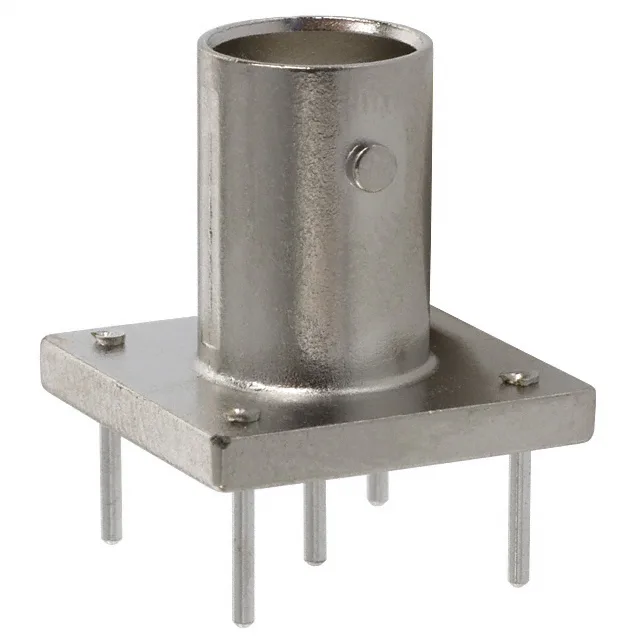

227699-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 227699-3 BNC Jack, 50 Ohm, 4 GHz

MPN227699-3
Active

TE Connectivity BNC jack, female socket, 50 Ohms, 4 GHz, 500 V, through hole, solder termination, bayonet lock, 1 port, Bulk.

$3.1116Ref. price · indicative, final on quote
227699-3 datasheet
StockIn Stock (35)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

227699-3 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolybutylene Terephthalate (PBT), Polyester
Center contact materialPhosphor Bronze
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingTin

Product details

Impedance, Frequency, and Mating Cycle Life

The 227699-3: The 4 GHz upper frequency covers common bands like Wi-Fi (2.4 GHz) and ISM applications, but not the full 6 GHz of newer Wi-Fi 6E. With 500 mating cycles rated, this jack is built for moderate reconnect duty in lab or field-service environments, not for a single permanent install.

Through-hole solder termination means the centre pin and shield legs are soldered into plated holes on the PCB — no crimp tool needed, but the board footprint must match the pin circle.

Voltage and Temperature Range

Rated 500 V, which is typical for a BNC interface and gives headroom for signal-level voltages plus some margin.

Frequently asked questions

What cable or mating connector works with 227699-3?

For a cable assembly, pair it with a BNC male crimp or compression plug on the cable side — the interface is the standard BNC bayonet-lock design.
