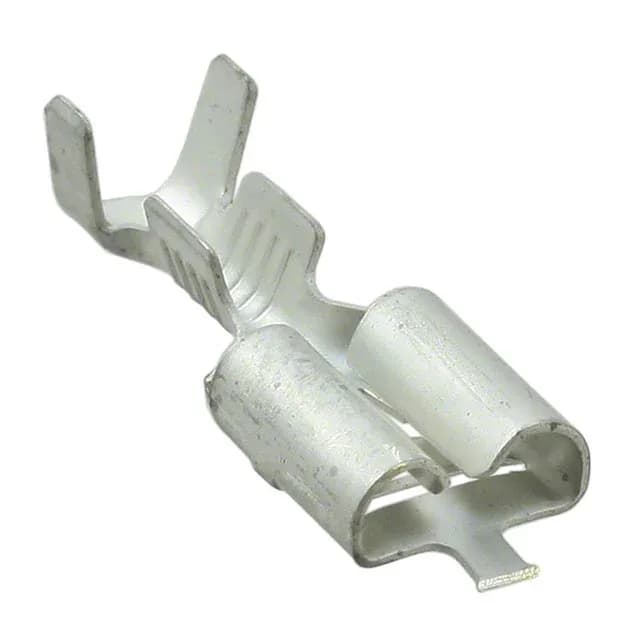

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 2293895-1, female, 0.187" (4.75mm) tab width, 14-17 AWG, tin-plated brass, crimp termination, non-insulated, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-17 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.248\" (6.30mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) / 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.591\" (15.00mm) |
| Insulation diameter | 0.118\" ~ 0.169\" (3.00mm ~ 4.29mm) |
The 2293895-1 is a non-insulated female quick-disconnect terminal in TE Connectivity's Faston series, accepting 14-17 AWG wire with a 0.187" (4.75mm) tab width. Tin-plated brass contact with crimp termination; the 0.591" (15.00mm) overall length and 0.248" (6.30mm) tab length suit standard Faston receptacles.
Available to order against BOM quantity. Price and lead time confirmed at RFQ.
