TE Connectivity AMP Connectors 229974-1 — Centronics Connectors

TE CHAMP .085 229974-1, 50-Pos IDC Plug, 30µ" Gold

MPN229974-1
Active

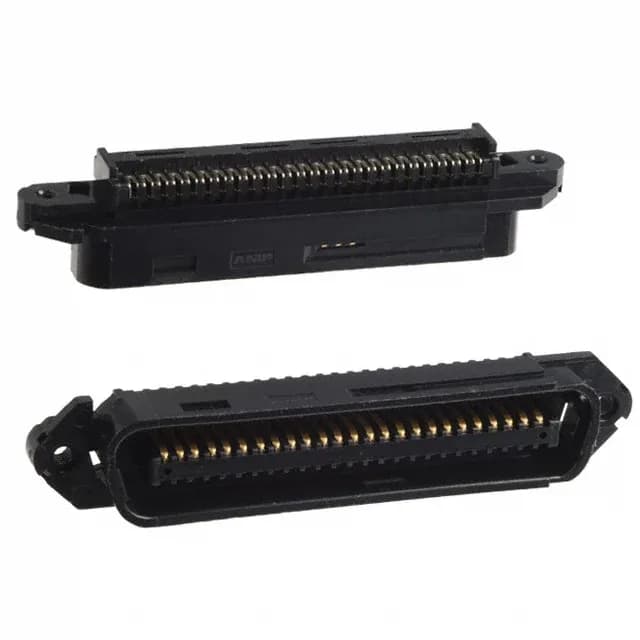

TE Connectivity CHAMP.085 series, 229974-1, IDC plug, 50 positions, 2 rows, 30.0µin gold contact finish, free-hanging, 4-40 flange, tray pack.

$7.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

229974-1 specifications
ParameterValue
SeriesCHAMP .085
MountingFree Hanging (In-Line)
Connector typeCenter Strip Contacts
PackageTray
TerminationIDC
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 229974-1 is a 50-position IDC plug from the CHAMP.085 series, built for mass-termination of ribbon cable in a free-hanging, in-line mount. The housing includes a 4-40 threaded flange on each end, so it bolts into a panel or mates securely with the matching receptacle's jack-screws.

Termination and Mating — What the IDC and Flange Mean for the Build

No stripping, no crimping, no solder. That makes it a fast, repeatable termination for multi-conductor cables in a harness shop or on a production line. The 4-40 threaded flange is not decorative: it lets you screw the plug to a panel or to the mating receptacle, which keeps the pair locked together under vibration. Without the jack-screws tightened, the IDC contacts can work loose over time in a moving assembly.

Frequently asked questions

Where can I buy the 229974-1 connector?

The 229974-1 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

What is the mating connector for 229974-1?

The mating receptacle is the TE 229975-1, a 50-position IDC receptacle with the same 4-40 flange and 30.0µin gold contacts.
