TE Connectivity AMP Connectors 229975-1 — Centronics Connectors

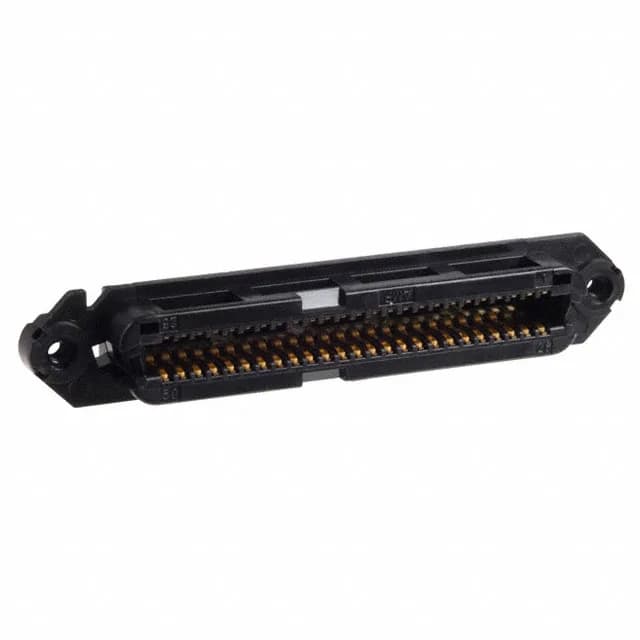

TE Connectivity 229975-1 CHAMP .085 Receptacle, 50 Pos IDC

MPN229975-1
Active

TE Connectivity CHAMP.085 series, receptacle, 50 positions, 2 rows, IDC termination, free hanging, gold 30.0µin contacts, 4-40 flange.

$4.2700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 229975-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

229975-1 specifications
ParameterValue
SeriesCHAMP .085
MountingFree Hanging (In-Line)
Connector typeOuter Shroud Contacts
PackageBulk
TerminationIDC
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

50-Position IDC Receptacle for Rack-and-Panel I/O

The outer shroud contact style and 4-40 threaded flange tell you this is a rack-and-panel I/O connector — it bolts into a panel or mates with a matching CHAMP.085 plug that has the same flange pattern, not a free-hanging latch.

IDC Termination and Free-Hanging Mount

IDC termination means the cable insulation is pressed into the slot, displacing the insulation to make contact with the conductor — no individual crimp terminals, no wire stripping. The free-hanging (in-line) mount suits cable-to-panel or cable-to-cable applications where the connector body floats on the harness, not a board-mounted header. The 4-40 threaded holes in the housing shell accept jackscrews or bolts to secure the mated pair against vibration.

Frequently asked questions

What does the 4-40 flange feature mean for mounting?

The 4-40 threaded flange allows the receptacle to be bolted to a panel or to the mating plug's shell — it's a rack-and-panel style connection, not a snap-in latch, so plan for screw-access in the enclosure design.
