TE Connectivity AMP Connectors 2301841-1 — D-Sub Cable Assemblies

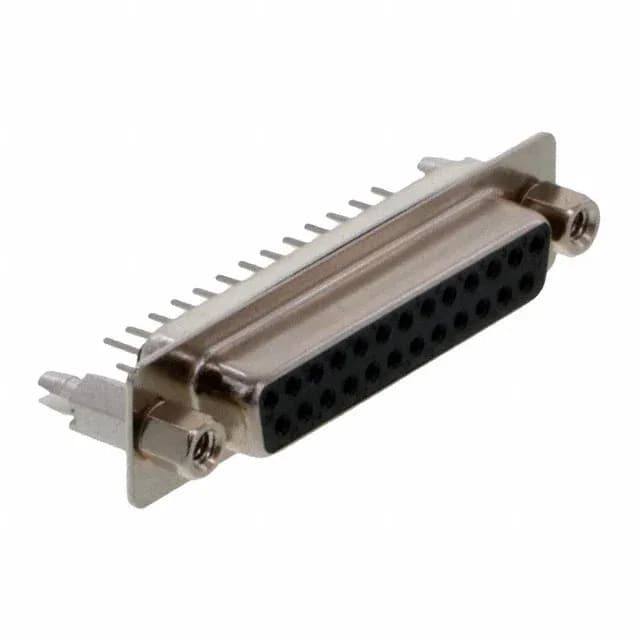

TE 2301841-1 AMPLIMITE HD-20 D-Sub Receptacle, 25 Pos, 1.5A

MPN2301841-1
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 2301841-1, 25 positions, 2 rows, vertical through-hole solder, gold 15.0µin contacts, 1.5A per contact, 250VAC, board locks, UL94 V-0.

$4.0100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2301841-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2301841-1 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating250VAC
Current rating1.5A per Contact
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT), Glass Filled
Shell material, finishSteel, Tin Plated

All specifications

2301841-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions25
Contact finish thickness15.0µin (0.38µm)

Product details

The TE Connectivity 2301841-1 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for signal-level board-to-cable interconnects. It uses female sockets on a 0.108-inch pitch (standard DB-25 layout) and terminates via through-hole solder tails.

Board locks and mounting

The flange features 4-40 threaded inserts on the board side, allowing the mating plug to be secured with jackscrews for a vibration-resistant joint. The through-hole mounting provides a stronger mechanical bond than surface-mount for a connector this size.

The steel shell is tin-plated for EMI shielding and corrosion resistance. RoHS compliance is confirmed.

Frequently asked questions

Where can I buy the TE 2301841-1 D-Sub receptacle?

The 2301841-1 is an active part sourced through independent distribution.

Is 2301841-1 a receptacle or plug?

It is a receptacle with female sockets, designed to mate with a male D-Sub plug (solder cup or crimp) of the same shell size DB-25.

Does 2301841-1 have board locks?

Yes, it includes board locks that anchor the connector to the PCB during soldering and improve vibration resistance.
