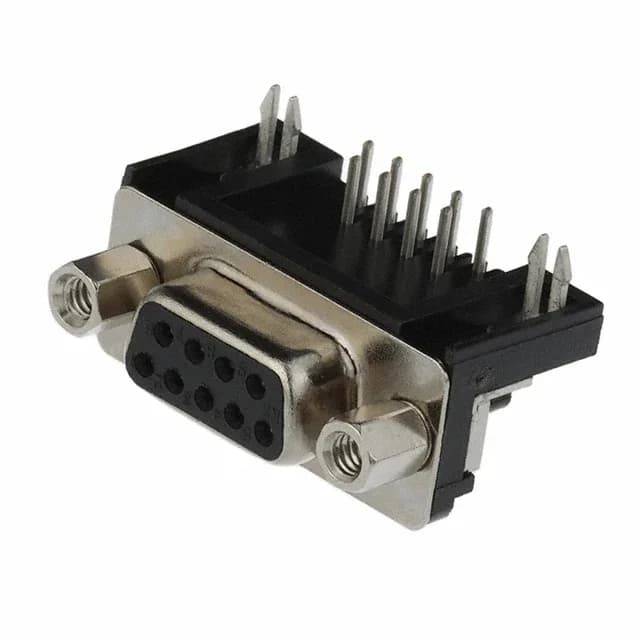

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle through-hole solder, gold-plated contacts, 2A per contact, 250VAC, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250VAC |
| Current rating | 2A per Contact |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.411\" (10.43mm) |
| Positions | 9 |
| Contact finish thickness | 15.0µin (0.38µm) |
The 0.411" backset spacing positions the connector for board-edge mounting where enclosure clearance is tight.
The steel shell with nickel plating provides EMI shielding continuity when mated to a conductive backshell or panel.
Yes, it is ROHS3 compliant.
Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
