TE Connectivity AMP Connectors 2301996-7 — Modular / RJ Connectors

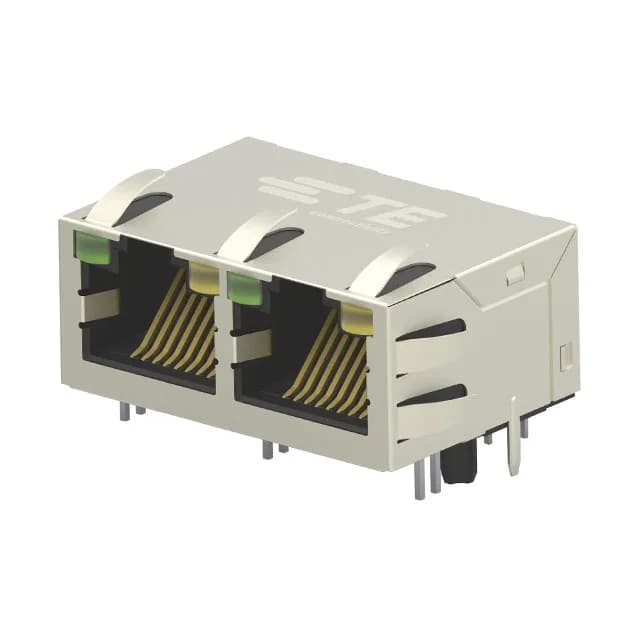

TE Connectivity 2301996-7 RJ45 Jack, 2-Port, 1000BASE-T

MPN2301996-7
Active

TE Connectivity RJ45 jack, 2-port, 8-position, 1-row, right-angle through-hole, shielded with EMI finger, gold 30.0µin contact finish, board lock, LED indicators, -40°C to 85°C, ROHS3 compliant.

$14.1900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2301996-7 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2301996-7 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorGreen, Yellow - Green, Yellow
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board0.531\" (13.49mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

2301996-7 additional specifications
ParameterValue
TerminationSolder
Applications10/100/1000 Base-T, AutoMDIX
Tab directionUp
Contact finishGold
Rows1
Number of ports2
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack8

Product details

Right-Angle Through-Hole, 2-Port, Shielded

The TE Connectivity 2301996-7 is a 2-port RJ45 jack designed for 10/100/1000 Base-T and AutoMDIX Ethernet applications. Each port carries 8 cores, the standard 4-pair pinout for Gigabit Ethernet. Board locks on the through-hole solder posts anchor the connector against the insertion and withdrawal forces of repeated cable mating.

Gigabit Ethernet Signal Integrity and Shielding

Rated for 1000BASE-T, this jack is built to maintain the signal integrity required for 4-pair bidirectional data transmission at 1 Gbps.

LED Indicators and Operating Range

Three LED colors — Green, Yellow-Green, and Yellow — are integrated into the jack housing for link/activity and speed indication, which saves a separate board-level LED and resistor.

Frequently asked questions

Where can I buy 2301996-7 and how is it priced?

The 2301996-7 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — quotes are confirmed at time of request. No stock-holding or live-price figure is published here.
