TE Connectivity AMP Connectors 2301996-8 — Modular / RJ Connectors

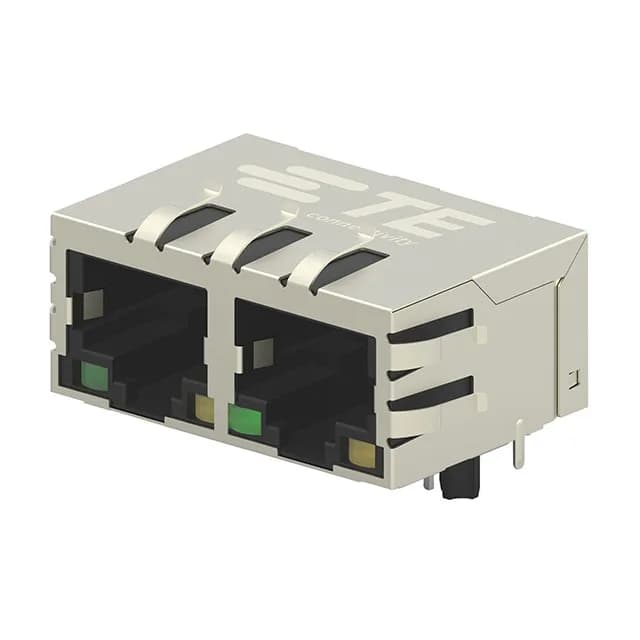

TE Connectivity 2301996-8 RJ45 Jack, 2-Port, 1000 Base-T

MPN2301996-8
Active

TE Connectivity RJ45 jack, 2-port, 90° right-angle, through-hole, shielded with EMI finger, gold 30.0µin contacts, board lock, -40°C to 85°C, ROHS3 Compliant.

$18.2500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2301996-8 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2301996-8 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorGreen, Yellow - Green, Yellow
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board0.531\" (13.49mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

2301996-8 additional specifications
ParameterValue
TerminationSolder
Applications10/100/1000 Base-T, AutoMDIX
Tab directionDown
Contact finishGold
Rows1
Number of ports2
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack8

Product details

The TE Connectivity 2301996-8 is a 2-port RJ45 jack designed for 10/100/1000 Base-T Ethernet applications, including AutoMDIX. The connector is shielded with an EMI finger to contain radiated emissions and provide a low-impedance ground path, critical for maintaining signal integrity at Gigabit speeds.

Key Features for the Board Layout

Each jack carries 8 cores, matching standard T568A/B wiring for Ethernet.

LED Indicators and Shielding Detail

Integrated LEDs in green, yellow-green, and yellow provide link/activity status per port, with the tab direction down for visibility when the connector is mounted on the top side of the board.

Frequently asked questions

Is 2301996-8 RoHS compliant?

Yes, it is ROHS3 Compliant.

Does 2301996-8 support Power over Ethernet (PoE)?

The connector is rated for 10/100/1000 Base-T and AutoMDIX, but the evidence does not specify PoE capability. PoE support depends on the magnetics and PCB design; the jack itself does not preclude it, but verify with the full module specification.

What is the height of the 2301996-8 connector?

The height above board is 0.531" (13.49mm).

How do I get current pricing and availability for 2301996-8?

Submit a request for the quantity you need; the lead time and price will be provided in the quotation.
