TE Connectivity AMP Connectors 2301997-7 — Modular / RJ Connectors

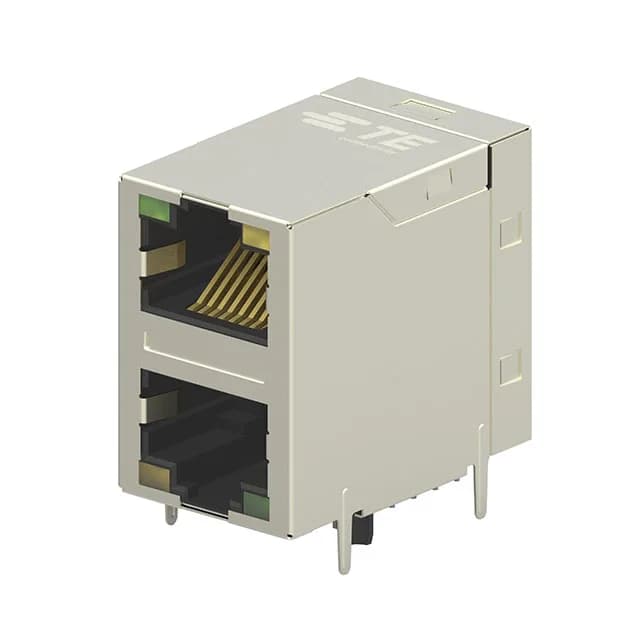

TE Connectivity 2301997-7 RJ45 Jack, 2 Port, 1000 Base-T

MPN2301997-7
Active

TE Connectivity RJ45 jack, 2 port, 90° right-angle, through-hole, shielded, board lock, green/yellow LED, 1000 Base-T, 8 cores per jack, gold 30.0µin contacts, -40°C to 85°C.

$18.2500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2301997-7 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2301997-7 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorGreen - Yellow
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board1.015\" (25.78mm)
PackageTray
FeaturesBoard Lock
ShieldingShielded
Orientation90° Angle (Right)

All specifications

2301997-7 additional specifications
ParameterValue
TerminationSolder
Applications10/100/1000 Base-T, AutoMDIX
Tab directionUp and Down
Contact finishGold
Rows2
Number of ports2
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack8

Product details

Dual-Port Gigabit Ethernet Jack with Board Lock and Status LEDs

The TE Connectivity 2301997-7 is a shielded RJ45 jack with two ports, each rated for 10/100/1000 Base-T and AutoMDIX operation. Each port carries eight cores, and the jack includes green and yellow LEDs for link and activity indication — the LED colour is fixed at green-yellow per the build. The brass shield and LCP housing provide the EMI containment and mechanical stability needed for industrial Ethernet and enterprise switching gear.

Board Lock, Contact Plating, and Temperature Range

Frequently asked questions

Where can I buy 2301997-7?

Submit a request for current pricing and availability — both are confirmed at quote time.

Does 2301997-7 have board lock and LED colors?

Yes, 2301997-7 includes board locks on the through-hole tails and green-yellow LEDs for link and activity indication.
