TE Connectivity AMP Connectors 2305909-3

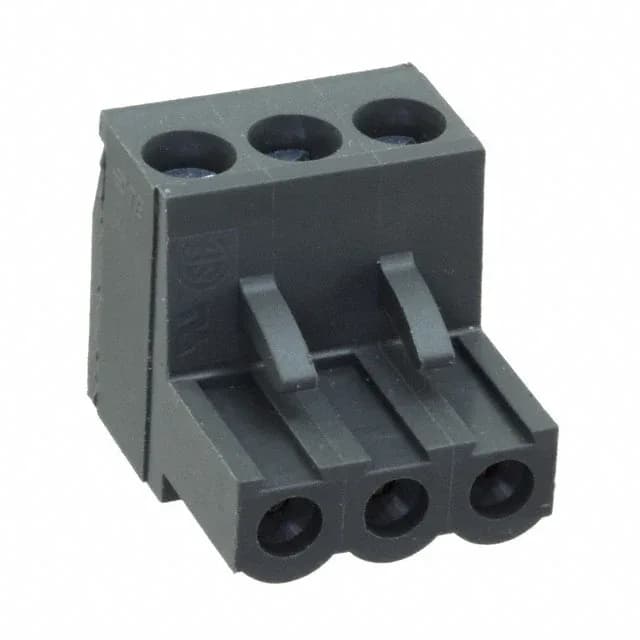

2305909-3 TE Connectivity Plug, 3 Pos, 5.00mm, Screw Term

MPN 2305909-3
Active

TE Connectivity AMP Connectors WireMate, TB, Buchanan series, 2305909-3, Plug, Female Sockets, 3 positions, 0.197" (5.00mm) pitch, screw termination, 15 A, 300 V, nickel contact finish, UL94 V-0.

$2.3400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesWireMate, TB, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2305909-3 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesWireMate, TB, Buchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry180°
Wire strip length7mm
Wire gauge or range - AWG12-26 AWG
ColorBlack
Contact materialCopper Alloy
Housing materialThermoplastic
Insulation height0.591\" (15.00mm)

All specifications

2305909-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Torque - screw0.5 Nm (4.4 Lb-In)
Number of levels1
Termination styleScrew
Positions3
Positions per level3
Contact mating finishNickel

Product details

Wire Range and Termination Checklist

The 2305909-3: Accepts 12-26 AWG wire with a 7 mm strip length. The screw clamp secures solid or stranded conductors — no ferrule is required but stranded wire benefits from one to prevent strand fan-out under the screw. Retention latches on the non-wire side lock the plug into the mating header, providing vibration resistance in panel or cabinet applications.
