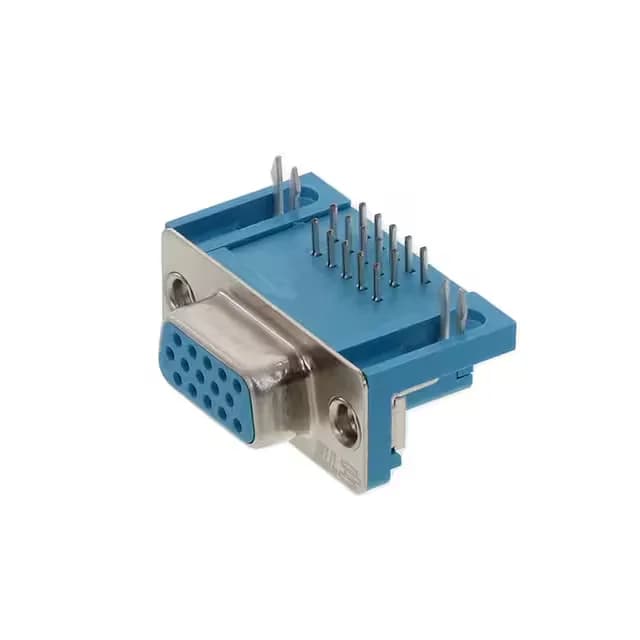

TE Connectivity AMPLIMITE HD-22 D-Sub, High Density receptacle, 2311586-4, 15 positions, 3 rows, right-angle through-hole solder, gold flash contacts, board lock, DE (E) shell size, 3A rated, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-22 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 3A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Blue |
| Contact material | Brass |
| Dielectric material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 3 |
| Backset spacing | 0.350\" (8.89mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
It uses the DE (E) high-density shell layout — the same footprint as a standard DE-9 shell but packed with 15 contacts in three rows instead of the usual nine in two. That extra row buys you more signal density in the same panel cutout, which matters when you are routing a harness through a crowded enclosure wall.
The contacts are brass with gold flash plating.
It is RoHS3 compliant.
It uses the DE (E) high-density shell layout — the same panel cutout as a standard DE-9 shell, but with 15 contacts in three rows instead of nine in two.
Yes, it is listed as ROHS3 Compliant.
