15-Position High-Density D-Sub for Signal Interconnects

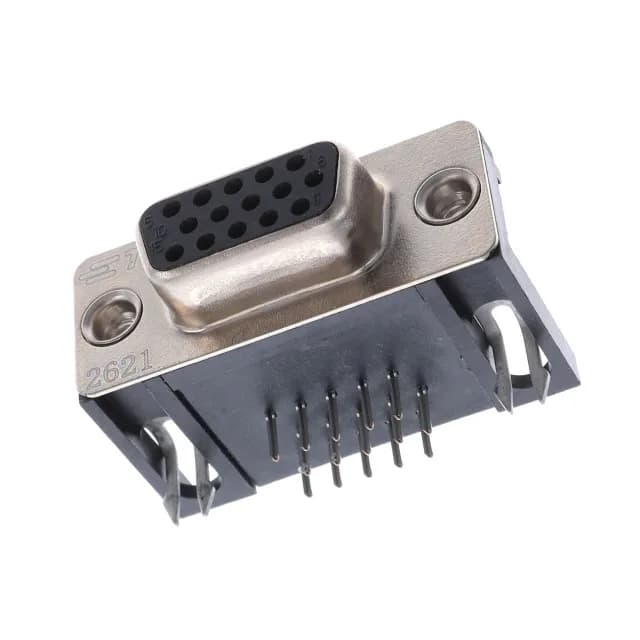

The TE Connectivity AMPLIMITE HD-22 2311763-2 is a 15-position, 3-row D-Sub high-density receptacle with female sockets. It uses a right-angle through-hole solder termination and carries gold-plated brass contacts rated 3A per circuit. This connector sits in the AMPLIMITE HD-22 series, which is TE's high-density D-subminiature line for signal-level interconnects where board space is tight but a standard-density shell size is needed.
Board Lock and Right-Angle Mounting for Vibration Resistance
The 0.350" (8.89mm) backset spacing positions the shell face at a consistent offset from the board edge, so the mating D-sub plug aligns cleanly with the panel cutout.
Gold Contacts and Threaded Flange for Field-Service Duty
The housing/shell flange uses 4-40 threaded inserts, which accept standard D-sub jack-screws to lock the mated pair. That threaded retention matters in industrial cabinets or transport applications where vibration can work a snap-lock loose over time.
