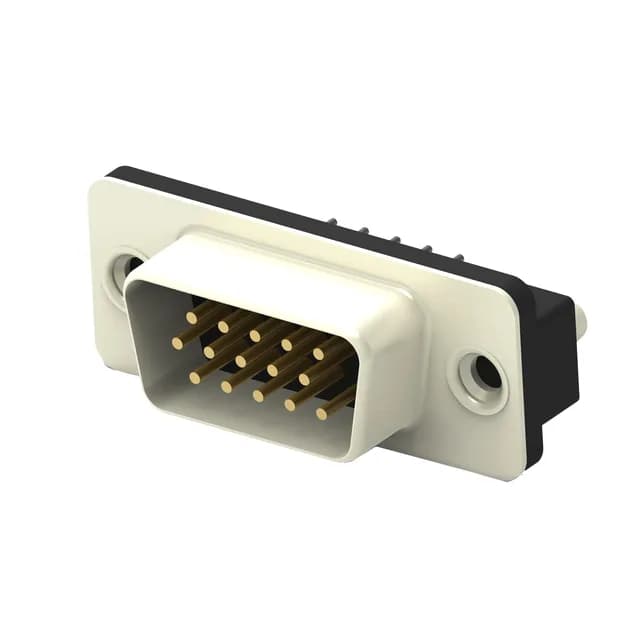

TE Connectivity AMPLIMITE HD-22 D-Sub High Density plug, 15 positions, 3 rows, 3 A, solder termination, through hole, 30.0µin gold, steel shell with board locks and grounding indents, black PBT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-22 |
| Mounting | Through Hole |
| Connector type | D-Sub, High Density |
| Current rating | 3A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
It terminates via solder to a through-hole PCB, with a vertical orientation — the pins stand straight up for a direct board mount.
The shell layout is 1 (DE, E) High Density — the standard footprint for a 15-position high-density D-sub.
Yes. The shell includes board locks for PCB retention and grounding indents to bleed shield current, as listed in the features.
