TE Connectivity AMP Connectors 2319461-5 — Header Plugs & Sockets

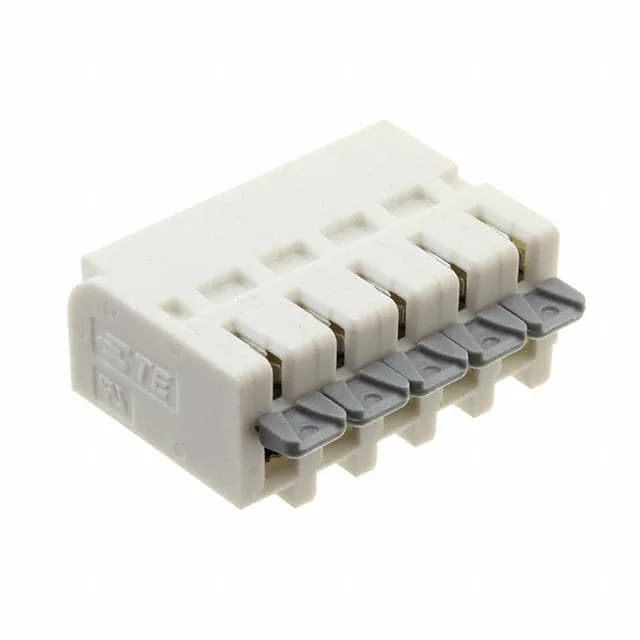

2319461-5 TE Connectivity WireMate 5-Pin Lever-Actuated Plug

MPN2319461-5
Active

TE Connectivity AMP Connectors WireMate, Buchanan series, Plug, Blade Sockets, 5 positions, 0.197" (5.00mm) pitch, lever actuated screwless termination, panel mount snap-in, 250 V UL, 18-24 AWG, UL94 V-0.

$4.0900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2319461-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesWireMate, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2319461-5 key specifications
ParameterValue
TypePlug, Blade Sockets
SeriesWireMate, Buchanan
MountingPanel Mount, Snap-In
Voltage - UL250 V
Plug wire entry180°
Wire strip length10mm
Wire gauge or range - AWG18-24 AWG
Wire gauge or range - mm20.2-0.82mm²
Operating temperature-40°C~85°C
ColorNatural
Contact materialCopper Alloy
Housing materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

2319461-5 additional specifications
ParameterValue
Insulation height0.669\" (17.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageTray
FeaturesLever Actuated
Number of levels1
Termination styleScrewless
Positions5
Positions per level5
Contact mating finishTin

Product details

5.00mm Pitch Lever-Actuated Plug for Tool-Less Field Wiring

The 2319461-5: The lever-actuated screwless termination lets you land 18-24 AWG wire without a screwdriver — the lever clamps the stripped conductor, and the 10 mm strip length gives the contact beam enough bite for a gas-tight joint. Rated 250 V UL, the plug carries the full voltage rating of the WireMate series.

Panel-Mount Snap-In with 180° Wire Entry

Mounts via panel-mount snap-in — no hardware, just push it into the cutout until the latches seat. The 180° wire entry means the cable exits straight out the back, which keeps the harness profile low against the panel. Insulation height is 0.669" (17.00 mm), so budget that z-height behind the panel face. The natural color housing is the standard for the WireMate series — no keying or color-coding on this variant, so confirm the mating half orientation before assembly.

The part is ROHS3 compliant.

Frequently asked questions

Can 2319461-5 be used for wire-to-board connections?

Yes — it is a plug that mates with a board-mounted header (not included). The lever-actuated termination makes field wiring fast without tools.

What is the closest functional second-source for 2319461-5?

The peer 2213936-8 is the same WireMate series, same 5.00 mm pitch, same 5 positions, and active. The only difference is packaging — Box vs Tray. No electrical or mechanical delta. Either can be sourced per RFQ.
