6 positions, 5.00 mm pitch — lever-actuated plug for panel wiring

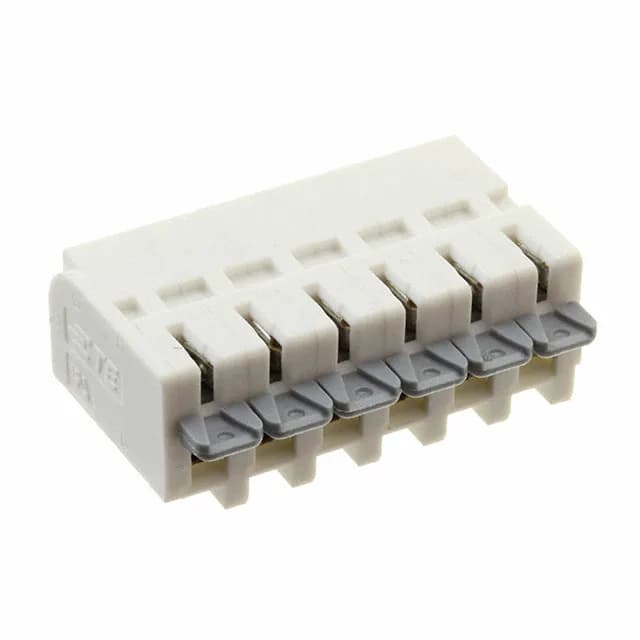

The 2319461-6: This is a 6-position plug with blade sockets from the TE WireMate and Buchanan series, pitched at 5.00 mm. The lever actuation and screwless termination let you land 18-24 AWG wire without a screwdriver — pull the lever, insert the stripped wire to 10 mm, snap the lever closed. The 180° wire entry keeps the cable routing straight into the panel, and the snap-in panel mount secures the connector without hardware. The tin-plated copper alloy contacts handle the current for signal and low-power circuits in these environments.
Screwless termination — lever locks the wire without tooling
The lever-actuated screwless clamp accepts solid or stranded wire from 18-24 AWG (0.2-0.82 mm²). The 10 mm strip length matches the contact depth — no need to trim or double-strip. This termination style cuts assembly time compared to screw-clamp terminals, especially on repetitive builds where the lever action is consistent. The plug mates with the matching WireMate header (sold separately). The blade socket interface is keyed by the housing geometry — no mis-mating risk when the header is correctly oriented.
Peer comparison: 6-position vs 4-position variants
The 6-position 2319461-6 adds two circuits for applications needing more I/O in the same panel cutout — the housing width scales with position count, so the panel opening differs. Both are active and ROHS3 compliant. Other peers include 2213932-9 and 2213933-4, also 4-position variants in the same series. For a 6-position requirement, 2319461-6 is the direct fit; no pin-compatible replacement exists outside the WireMate family.
