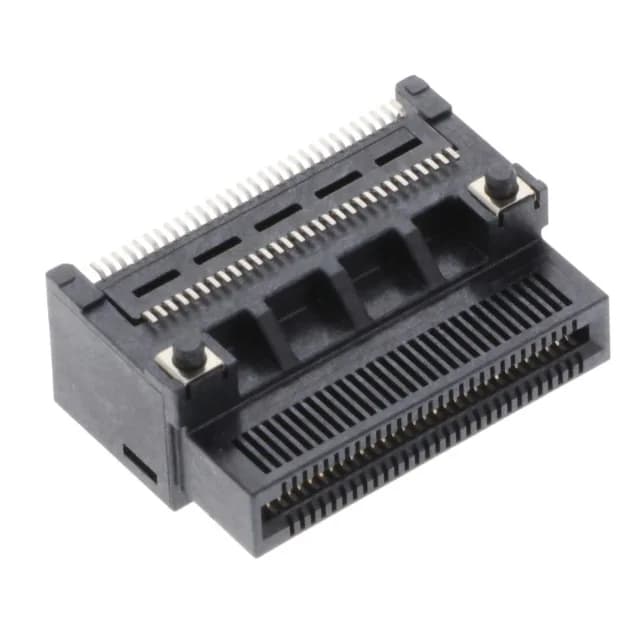

Board-Edge OSFP Receptacle for 60-Position Transceiver Interfaces
It mates directly with OSFP transceiver modules, carrying the full 60-circuit signal interface defined by the OSFP multi-source agreement. The board guide eases alignment during automated assembly, and the solder retention features anchor the connector against the shear forces of repeated cable plugging.
What the 60-Position Count and SMT Right-Angle Mount Mean for the Layout
The 60-position count matches the OSFP transceiver pinout one-to-one — no spare circuits, no depopulated rows. This is the standard footprint for line-card faceplate designs where the module slides in from the panel opening.
The Tape & Reel packaging suits high-volume pick-and-place lines; Cut Tape quantities are available for prototyping or low-volume builds.
