TE Connectivity AMP Connectors 2327671-1 — Card-Edge Connectors

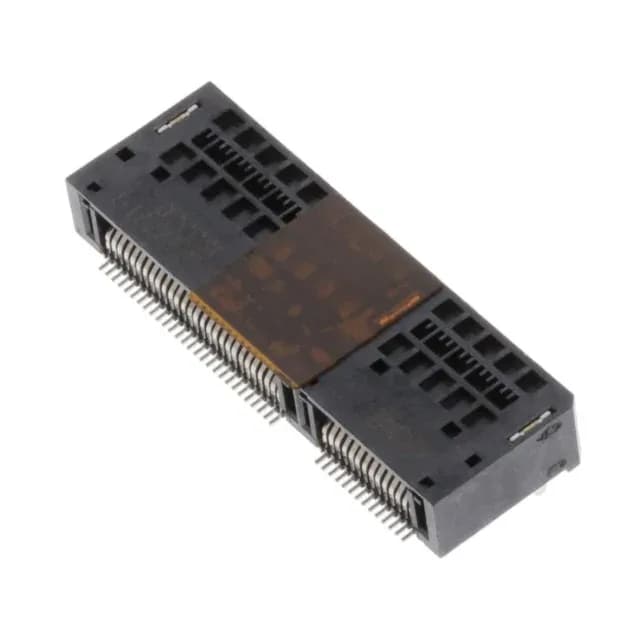

TE 2327671-1 Sliver 2.0 Edge Connector, 84 Pos, 0.60mm

MPN2327671-1
Active

TE Connectivity Sliver 2.0 dual-edge female connector, 84 positions, 0.024" (0.60mm) pitch, 2 rows, surface mount right-angle, gold flash contacts.

$8.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSliver 2.0
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2327671-1 key specifications
ParameterValue
SeriesSliver 2.0
Card typeNon Specified - Dual Edge
MountingSurface Mount, Right Angle
Operating temperature-55°C ~ 85°C
ColorBlack
Contact materialCopper Alloy
Material - insulationLiquid Crystal Polymer (LCP)
Pitch0.024\" (0.60mm)
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Pick and Place, Solder Retention
Read outDual

All specifications

2327671-1 additional specifications
ParameterValue
TerminationSolder
Card thickness0.062\" (1.57mm)
Contact finishGold
Rows2
Positions84
Contact finish thicknessFlash
Number of positions (Bay, row)28; 14

Product details

84-Position Sliver 2.0 Dual-Edge Connector

The TE Connectivity 2327671-1 is an 84-position female dual-edge connector from the Sliver 2.0 series, designed for high-density board-to-board signal interconnects. It accepts a 0.062" (1.57mm) thick card and mates with the corresponding Sliver 2.0 male edge card. The 0.024" (0.60mm) pitch packs 84 circuits into a compact footprint, suited for high-speed differential pair routing where board real estate is at a premium.

SMT Right-Angle Termination with Board Retention

The dual-row readout with 28 positions per bay and 14 per row uses gold flash contacts on copper alloy.

ROHS3 compliant.
