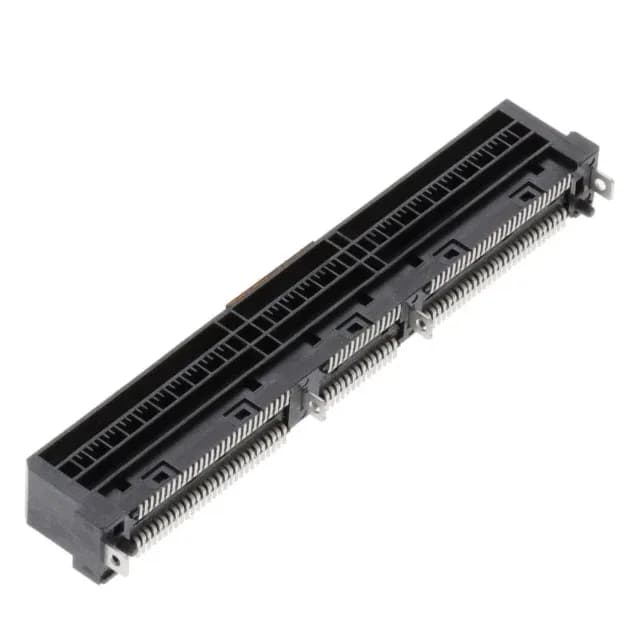

TE Connectivity AMP Connectors Sliver 2.0 series, 2327677-3, female card-edge connector, 140 positions, 0.60 mm pitch, dual read, surface mount, gold 30.0 µin contact finish, black LCP housing, active production.
| Parameter | Value |
|---|---|
| Series | Sliver 2.0 |
| Card type | Non Specified - Dual Edge |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.024\" (0.60mm) |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Read out | Dual |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 140 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 28; 14; 28 |
The 2327677-3 is a 140-position female card-edge connector from the TE Connectivity Sliver 2.0 series, designed for non-specified dual-edge cards with a thickness of 0.062" (1.57 mm). Dual-row readout with 28 positions per bay per row (28; 14; 28) supports segmented signal routing, common in high-speed differential pair layouts.
The pitch is 0.024" (0.60 mm).
Yes, it is RoHS compliant.
The 2327677-3 is a female card-edge connector that mates with a non-specified dual-edge card of 0.062" (1.57 mm) thickness. The mating half is typically the edge finger pattern on the card itself; no separate plug is used.
