TE Connectivity AMP Connectors 2337992-3

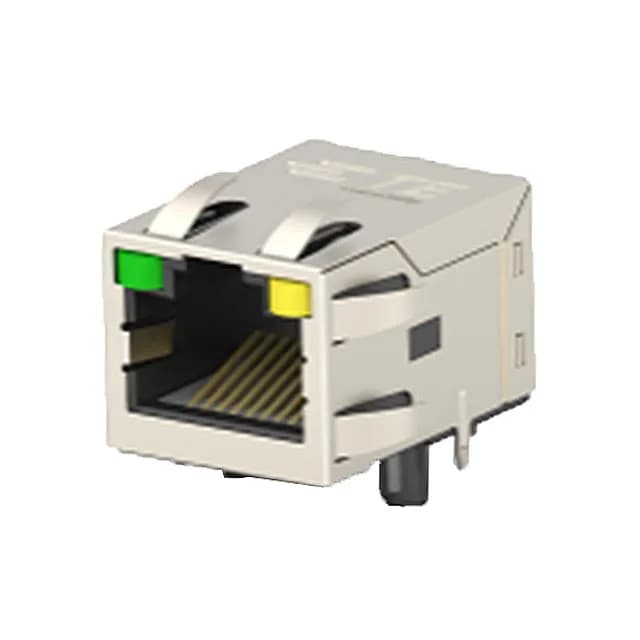

2337992-3 TE Connectivity RJ45 Jack, 1 Port, Shielded, PoE

MPN 2337992-3
Active

TE Connectivity RJ45 jack, 1 port, 90° right-angle, through-hole, shielded with EMI finger, gold 30.0µin contacts, 10/100 Base-T and PoE rated, Tape & Reel.

$14.0600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2337992-3 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorGreen - Yellow
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board0.543\" (13.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

2337992-3 additional specifications
ParameterValue
TerminationSolder
Applications10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack4

Product details

Why the Shielding and PoE Rating Matter for This RJ45 Jack

The TE Connectivity 2337992-3 is a single-port RJ45 jack built for 10/100 Base-T and Power over Ethernet (PoE) applications — the spec that separates it from a basic data-only connector. The shielded construction with an EMI finger bleeds common-mode noise from the cable shield to the chassis ground before it reaches the magnetics, which is what you need when running PoE alongside sensitive equipment in an industrial cabinet or a PoE switch.

Board Layout Fit and Line Feed

This jack sits 0.543" (13.80mm) above the board — a standard height that clears most enclosures and leaves room for the cable plug latch.

MPN
2337992-3
