TE Connectivity AMP Connectors 2337992-4 — Modular / RJ Connectors

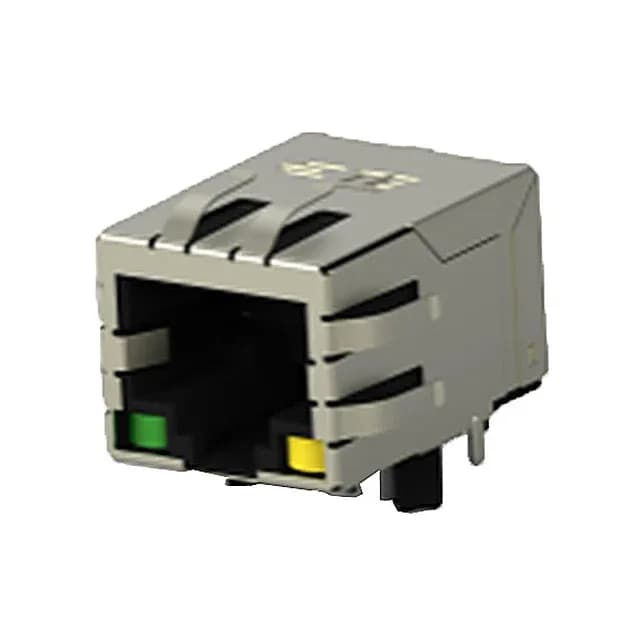

TE Connectivity 2337992-4 RJ45 Jack, 1 Port, Shielded, PoE

MPN2337992-4
Active

TE Connectivity RJ45 jack, 1 port, 1 row, 4 cores, right-angle, through-hole, shielded with EMI finger, gold 30.0µin contacts, green-yellow LEDs, 13.69mm board height, -40°C to 85°C.

$14.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2337992-4 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorGreen - Yellow
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board0.539\" (13.69mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

2337992-4 additional specifications
ParameterValue
TerminationSolder
Applications10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack4

Product details

Board-Mount RJ45 with PoE and Status LEDs

The TE Connectivity 2337992-4 is a single-port RJ45 jack built for 10/100 Base-T and Power over Ethernet (PoE) applications. It mounts right-angle through-hole, standing 0.539" (13.69 mm) above the board — a common height for standard Ethernet magnetics modules underneath. Four cores per jack match the 4-pair wiring of 10/100 Base-T.

Shielded, with Integrated Indicators

This jack carries a green-yellow bicolor LED — one LED, two colors, for link/activity indication on a single port.

Frequently asked questions

Does 2337992-4 support Power over Ethernet (PoE)?

Yes — the 2337992-4 is explicitly rated for Power over Ethernet (PoE) applications, per the manufacturer's application listing.

Is 2337992-4 shielded?

Yes — the jack has a brass shield with an EMI finger for conducted emissions control and chassis grounding.
