TE Connectivity AMP Connectors 2350397-5 — Header Plugs & Sockets

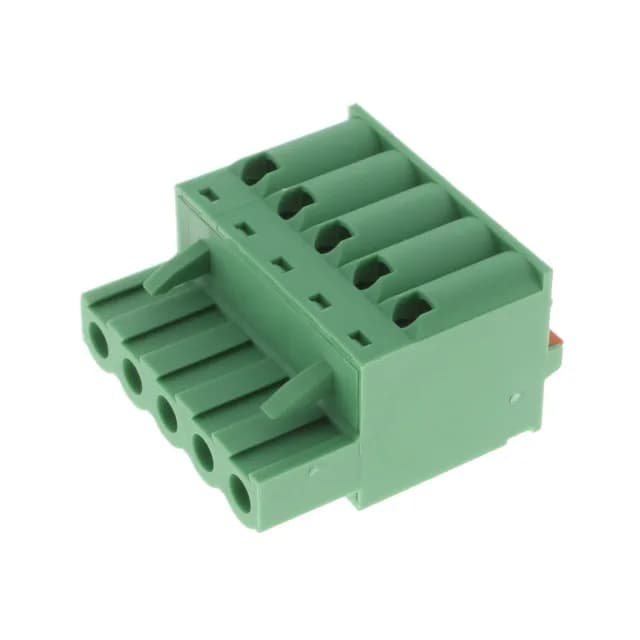

2350397-5 TE Connectivity 5 Pos Spring Plug 5.00mm Pitch

MPN2350397-5
Active

TE Connectivity AMP Connectors TB Buchanan series, 2350397-5, Plug, Female Sockets, 5 positions, 0.197" (5.00mm) pitch, 16 A, 300 V, screwless push-in spring termination, green housing, free hanging, 12-26 AWG

$2.0100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTB, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2350397-5 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesTB, Buchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL16 A
Plug wire entry180°
Wire strip length12-13mm
Wire gauge or range - AWG12-26 AWG
Wire gauge or range - mm20.13-3.31mm²
Operating temperature-40°C ~ 105°C
ColorGreen
Contact materialCopper Alloy

All specifications

2350397-5 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.591\" (15.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesPush Button Actuated, Retention Latches (Non-Wire Side)
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions5
Positions per level5
Contact mating finishTin

Product details

5-position spring-clamp plug for panel wiring

The 2350397-5 is a 5-position plug from the TE TB Buchanan series, using push-in spring clamps instead of screws. It accepts 12-26 AWG wire and is rated 16 A per circuit at 300 V, making it a line-level interconnect for power distribution or control panel wiring.

Push-button release and wire entry

The plug features push button actuation and retention latches on the non-wire side, so the operator can release the latch by pressing the button rather than prying with a screwdriver. Wire entry is 180° straight-in, and the strip length is 12-13 mm for a reliable spring grip.

Frequently asked questions

Where can I buy 2350397-5 and what is the lead time?

The 2350397-5 is an active TE product. We source it per RFQ — confirm current pricing and availability at quote time.

What is the wire gauge range for 2350397-5?

The plug accepts 12-26 AWG solid or stranded wire, covering 0.13-3.31 mm². The push-in spring clamp works with the specified strip length of 12-13 mm.
